New

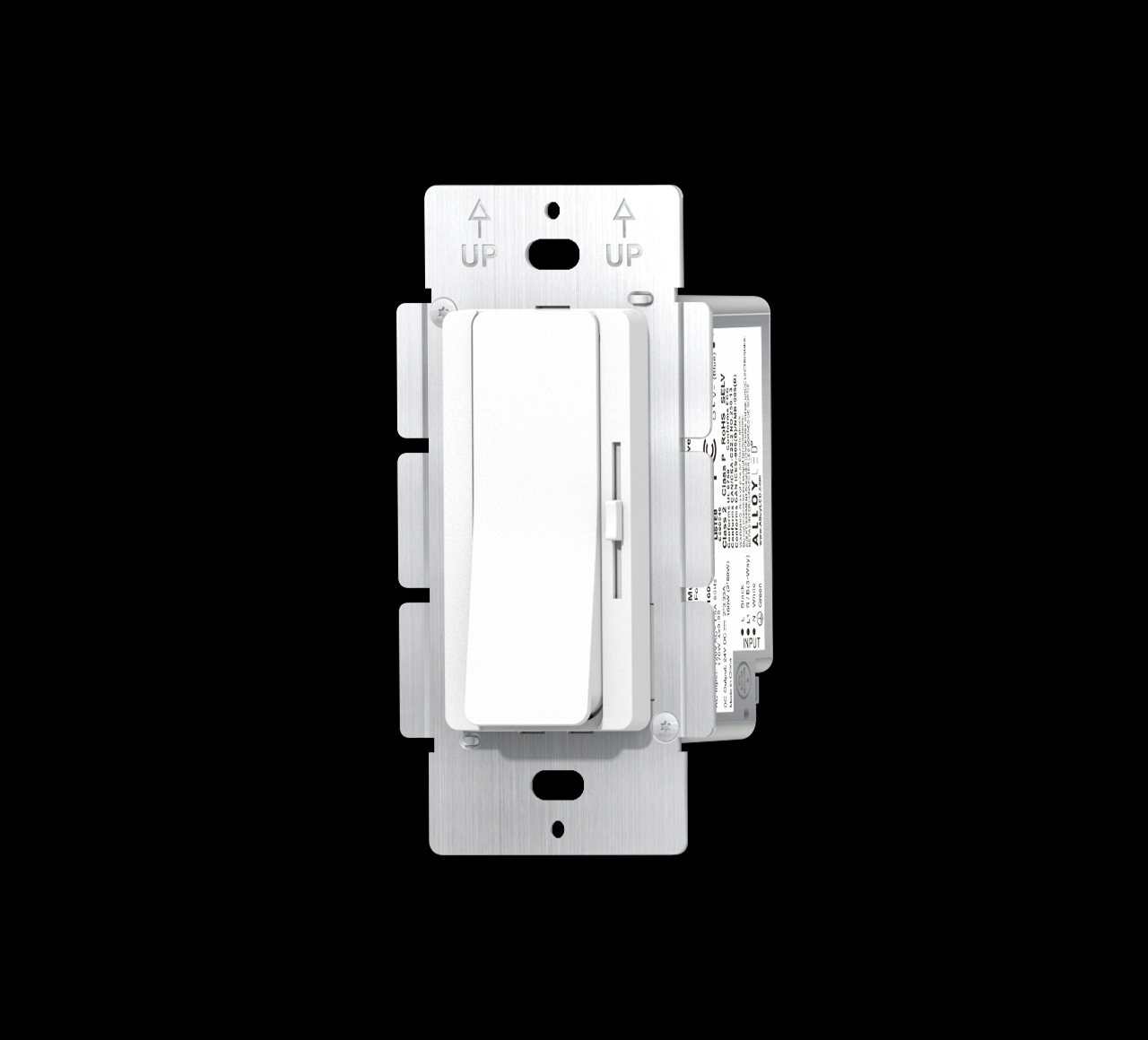

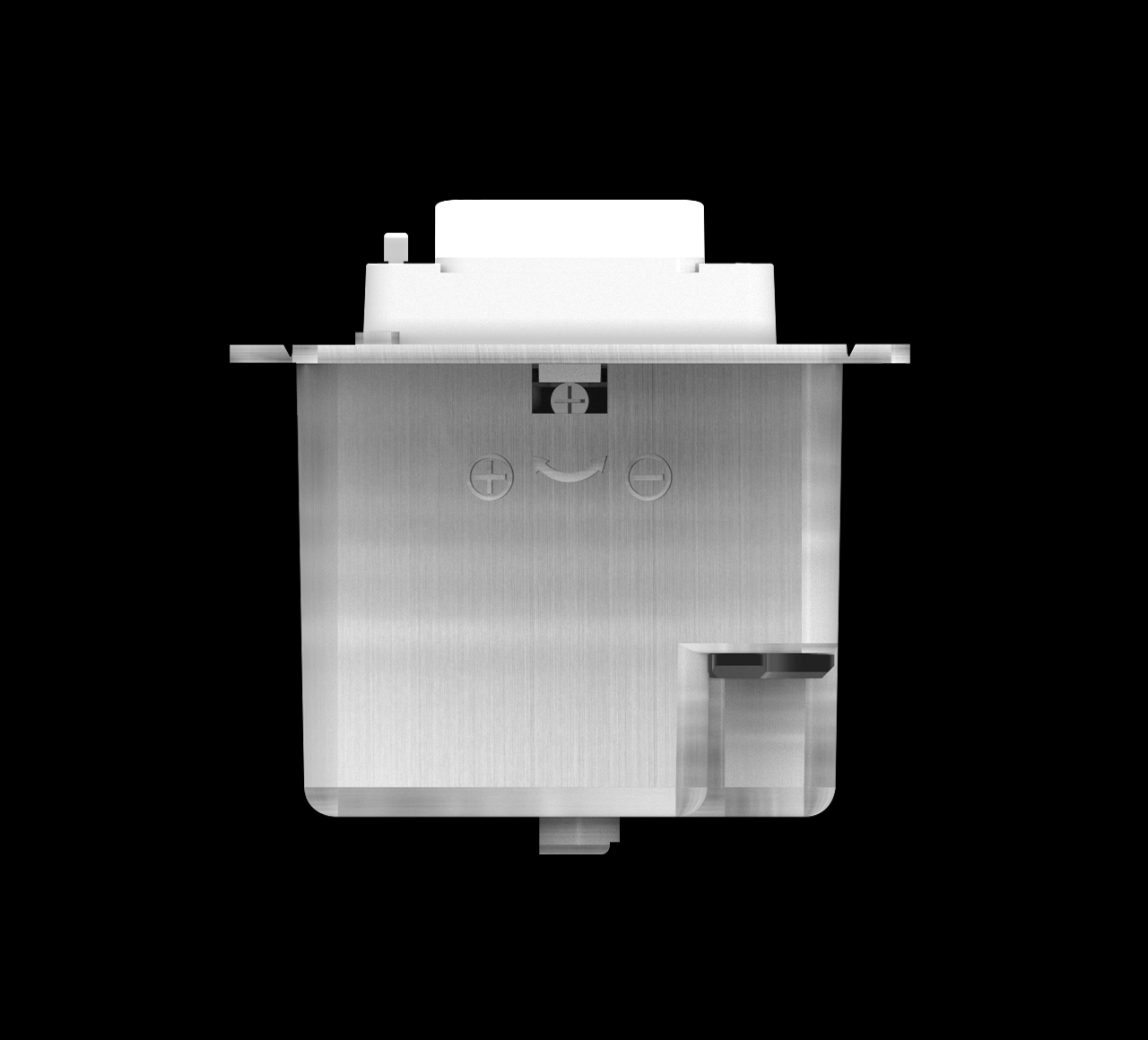

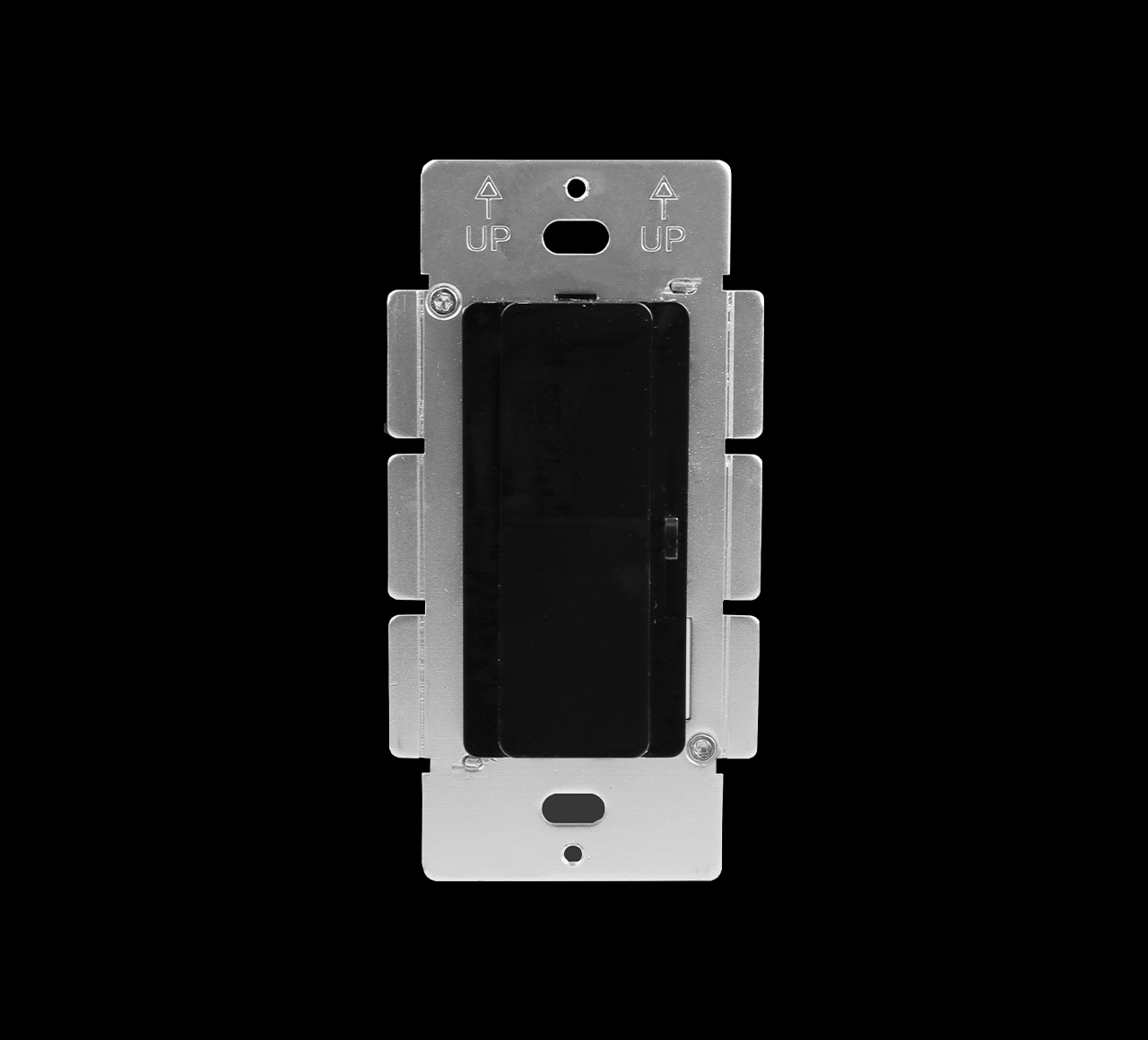

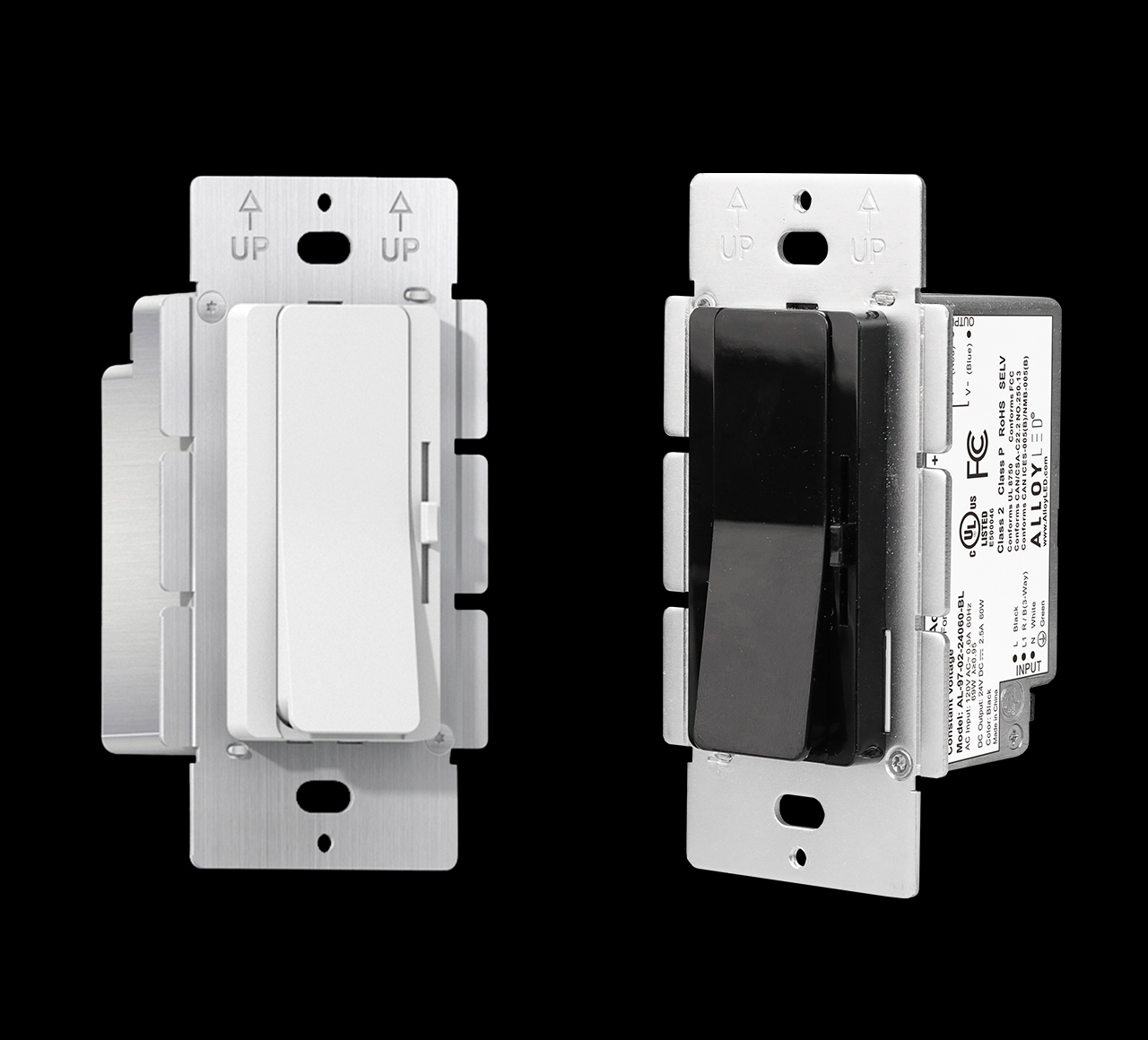

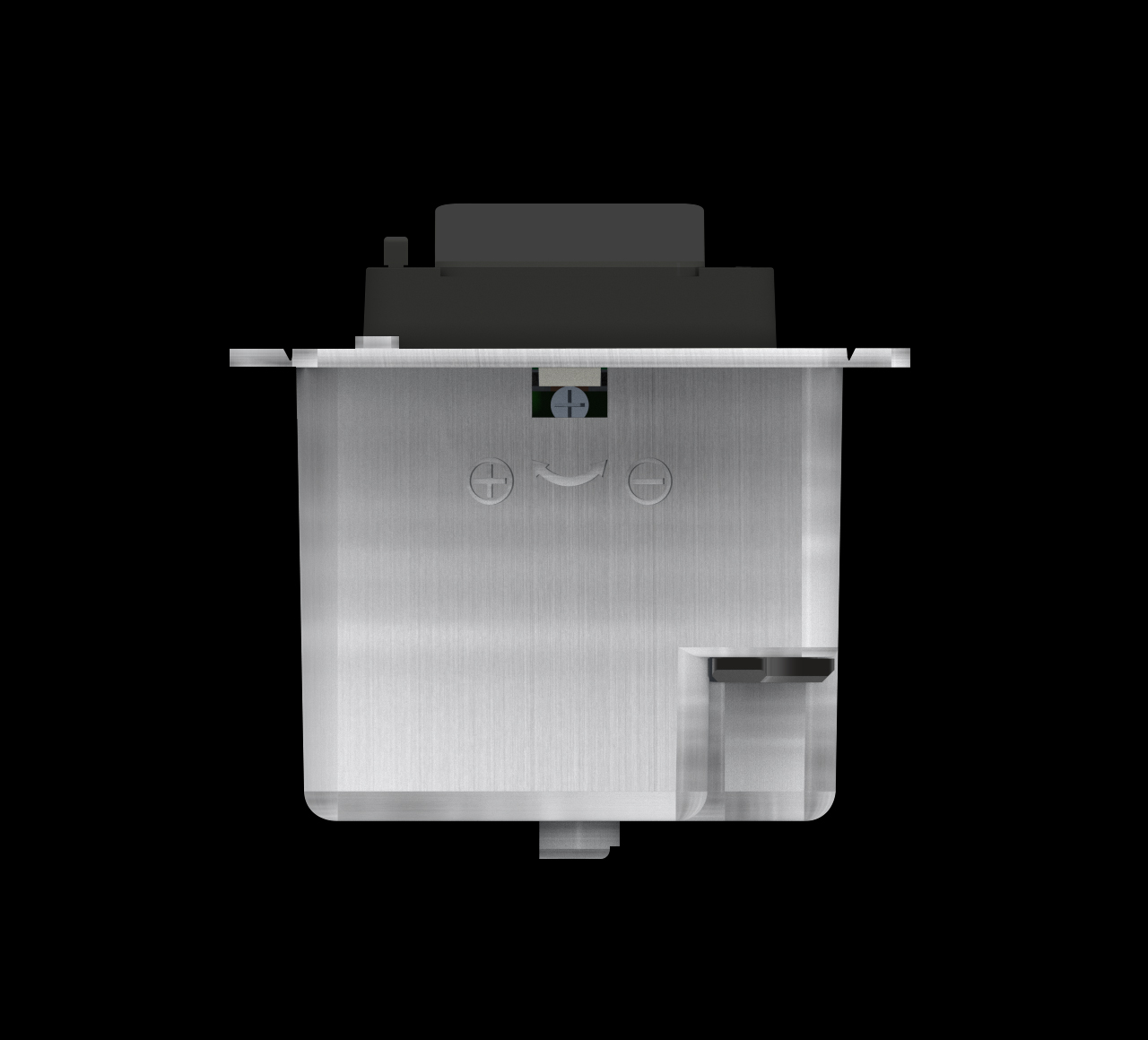

AdaptDrive – 24V/12V DC – LED Wall Dimmer and Driver

AL-97-0X-XXXX

AdaptDrive is an all-in-one LED driver and dimmer that simplifies installation by fitting directly into a standard recessed electrical box—eliminating the need for a separate driver location. UL Listed and Class 2 Compliant, AdaptDrive is available in both 12VDC and 24VDC configurations to suit tunable white light applications.

AdaptDrive also includes a breakthrough multi-tap version featuring dual outputs, delivering up to 160W from a single unit. This is the first driver of its kind to provide this level of power in such a compact footprint – making it ideal for high-output applications where space is limited

  • Constant Voltage Output in 12VDC and 24VDC
  • Most Models are Class 2 Compliant
  • Installs directly into standard wall boxes

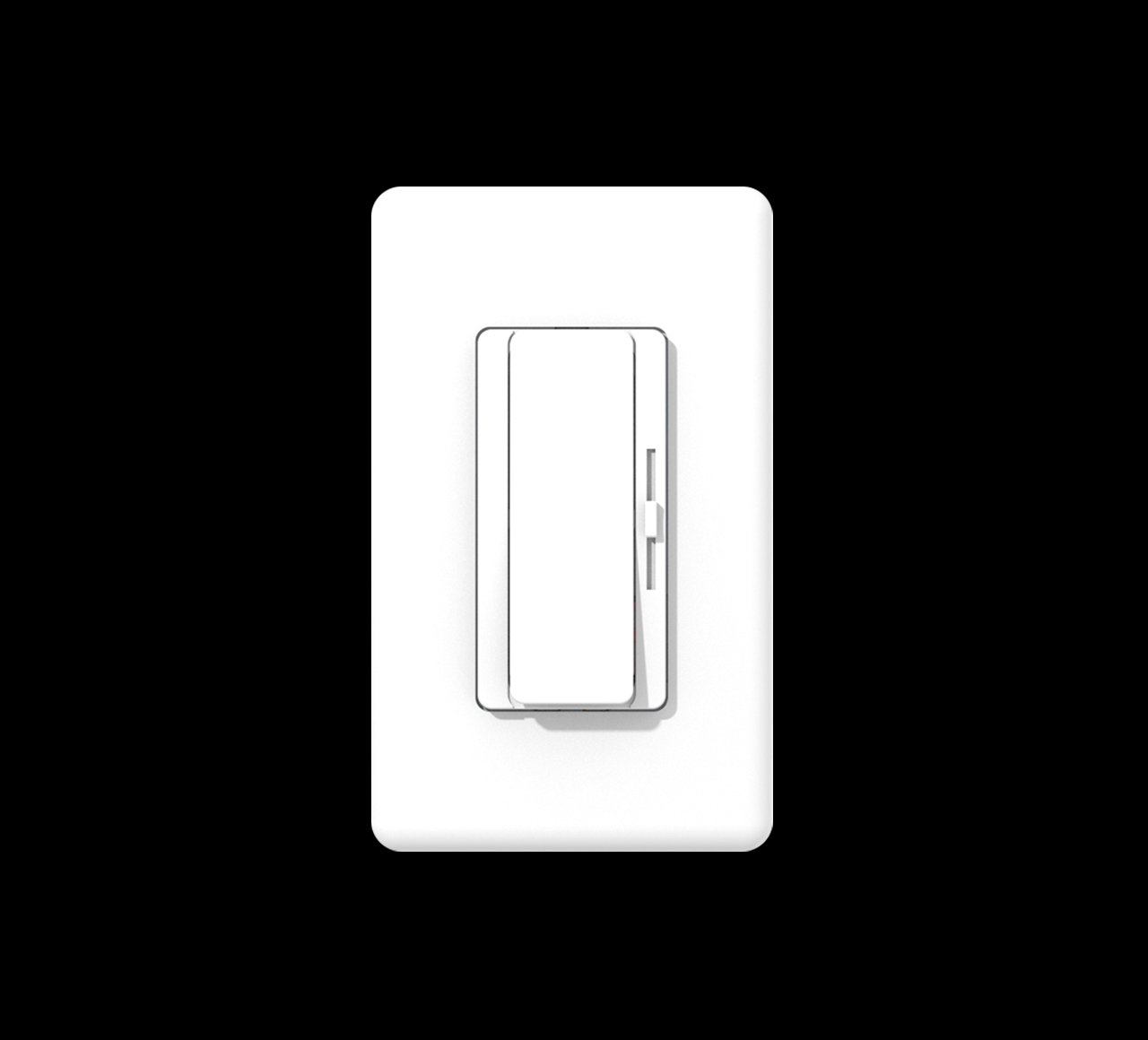

  • Clean white finish on trim
  • First in its class for power density in a recessed enclosure
Get more info
Quick Specs Specification Sheet Literature
  • Input Voltage: 120V AC
  • Features: 100% Maximum Load, 0% Minimum Load
  • Environment: Dry/Damp
  • Certifications: UL/cUL/FCC/Class 2/SELV/RoHs/Reach
  • Warranty: 6 Year Limited

Multi-Tap Models

Varitune Models



Quick Specs
  • Input Voltage: 120V AC
  • Features: 100% Maximum Load, 0% Minimum Load
  • Environment: Dry/Damp
  • Certifications: UL/cUL/FCC/Class 2/SELV/RoHs/Reach
  • Warranty: 6 Year Limited
Specification Sheet

Multi-Tap Models

Varitune Models



Literature
Models
Item Number Output Voltage Wattage Dimensions
AL-97-02-12060 12V DC 60W 4.13 x 2.12 x 1.59 in.
AL-97-02-12120 12V DC 120W 4.13 x 2.12 x 1.59 in.
AL-97-02-12120-MT 24V DC 120W (2 x 60W Ports) 4.13 x 2.12 x 1.59 in.
AL-97-02-24060 24V DC 60W 4.13 x 2.12 x 1.59 in.
AL-97-02-24096 24V DC 96W 4.13 x 2.12 x 1.59 in.
AL-97-02-24160 24V DC 160W 4.13 x 2.12 x 1.59 in.
AL-97-02-24160-MT 24V DC 160W (2 x 80W Ports) 4.13 x 2.12 x 1.59 in.
AL-97-03-24096 24V DC 96W 4.13 x 2.12 x 1.59 in.
AL-97-03-24160 24V DC 160W 4.13 x 2.12 x 1.59 in.
