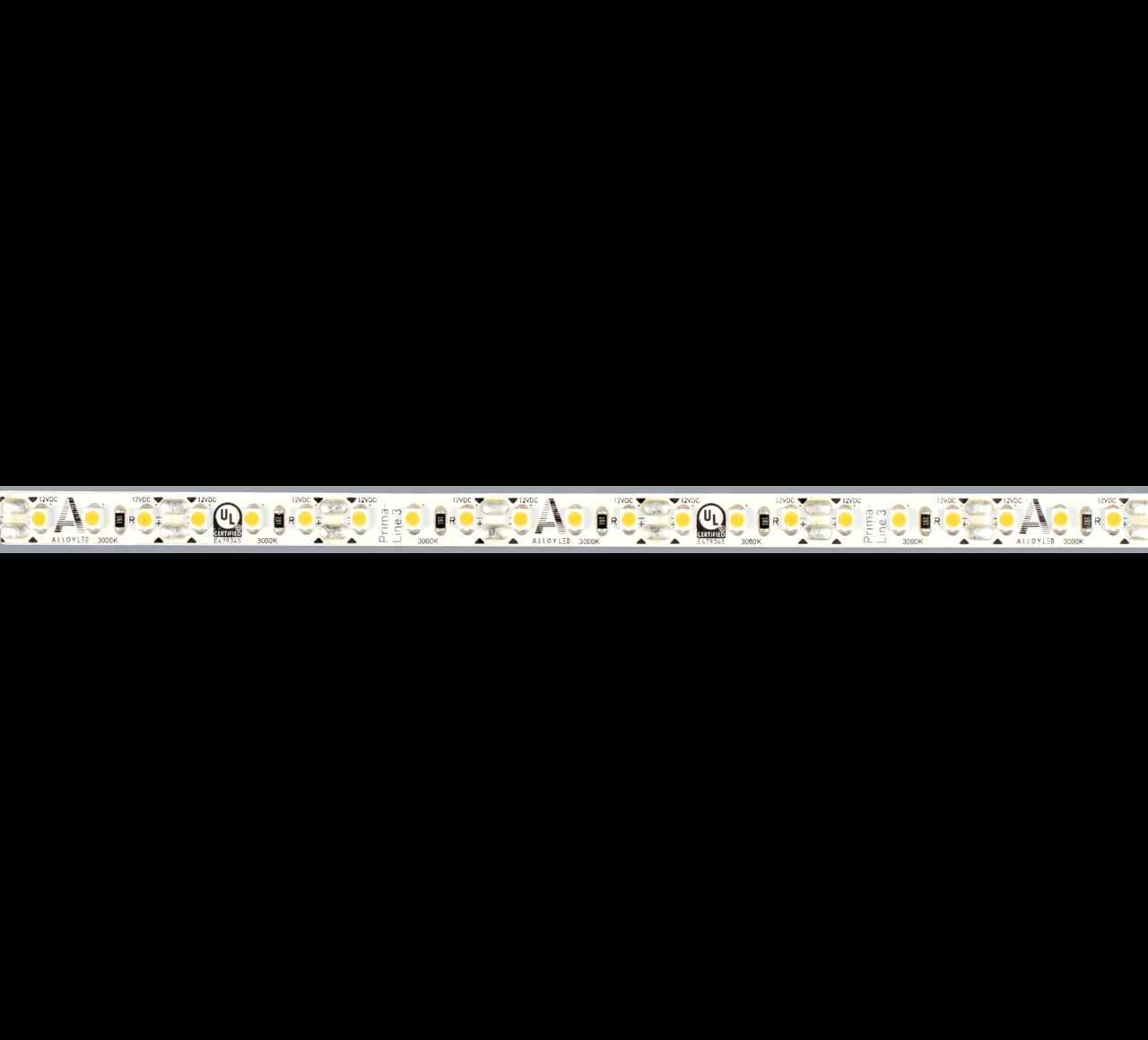

PrimaLine 3 Wet Location Tape Light

AL-01-02-XXXX

PrimaLine® 3 Wet Location LED Tape Light offers high output, dimmable LED task lighting at just 3 watts per foot and is wet location safe. This linear light is perfect for medium to large task lighting, accenting, workspace lighting, as well as kitchen, bathroom, cabinet and shelf applications.

Get more info
Quick Specs Specification Sheet Instructions Compatibility Chart IES Files Photometrics
  • Stocked Color Temperatures: 2700K, 3000K, 4200K, 5000K
  • 12V Power Consumption per foot: 2.88 Watts/240mA
  • 24V Power Consumption per foot: 2.88 Watts/120mA
  • Input Voltage: 12/24V DC
  • LED Chips per foot: 36
  • LED Chip Spacing: 0.3 inches
  • Tape Width: 0.4 inches
  • Tape Height: 0.2 inches
  • Beam Angle: 120°
  • 12V Field Cuttable (UL 2108): Every 1 inch
  • 24V Field Cuttable (UL 2108): Every 2 inches
  • Dimmable: Yes
  • LED Chip Type: 3528 SMD
  • Included Accessories: 5 splice sleeves, 10 waterproof end caps, and 10 mounting clips with screws
  • Operating Temperature: -13° F to 140° F
  • Spool Length: 16.4 ft.
  • Location: Wet (IP68) / Dry
  • Certifications: UL, RoHS, UL 2108
  • Standards: Certified to the CA Energy Commission in accordance with the Title 24 JA8 2016 std. (2700K – 4200K models only)
  • Warranty: 6 Year Limited

PrimaLine 3 Wet Location Photometrics

Quick Specs
  • Stocked Color Temperatures: 2700K, 3000K, 4200K, 5000K
  • 12V Power Consumption per foot: 2.88 Watts/240mA
  • 24V Power Consumption per foot: 2.88 Watts/120mA
  • Input Voltage: 12/24V DC
  • LED Chips per foot: 36
  • LED Chip Spacing: 0.3 inches
  • Tape Width: 0.4 inches
  • Tape Height: 0.2 inches
  • Beam Angle: 120°
  • 12V Field Cuttable (UL 2108): Every 1 inch
  • 24V Field Cuttable (UL 2108): Every 2 inches
  • Dimmable: Yes
  • LED Chip Type: 3528 SMD
  • Included Accessories: 5 splice sleeves, 10 waterproof end caps, and 10 mounting clips with screws
  • Operating Temperature: -13° F to 140° F
  • Spool Length: 16.4 ft.
  • Location: Wet (IP68) / Dry
  • Certifications: UL, RoHS, UL 2108
  • Standards: Certified to the CA Energy Commission in accordance with the Title 24 JA8 2016 std. (2700K – 4200K models only)
  • Warranty: 6 Year Limited
Specification Sheet
Instructions
Compatibility Chart
IES Files
Photometrics

PrimaLine 3 Wet Location Photometrics

Models
16.4 ft. Spool Item Number Voltage Color Temperature Watts / foot Lumens / foot CRI Maximum Run
AL-01-02-1261 12V DC 2700K 2.88W 185 97 21 ft.
AL-01-02-1262 12V DC 3000K 2.88W 205 95 21 ft.
AL-01-02-1263 12V DC 4200K 2.88W 193 95 21 ft.
AL-01-02-1264 12V DC 5000K 2.88W 264 95 21 ft.
20 ft. Spool Item Number Voltage Color Temperature Watts / foot Lumens / foot CRI Maximum Run
AL-01-02-2461 24V DC 2700K 2.88W 186 97 33 ft.
AL-01-02-2462 24V DC 3000K 2.88W 221 95 33 ft.
AL-01-02-2463 24V DC 4200K 2.88W 247 94 33 ft.
AL-01-02-2464 24V DC 5000K 2.88W 227 95 33 ft.
