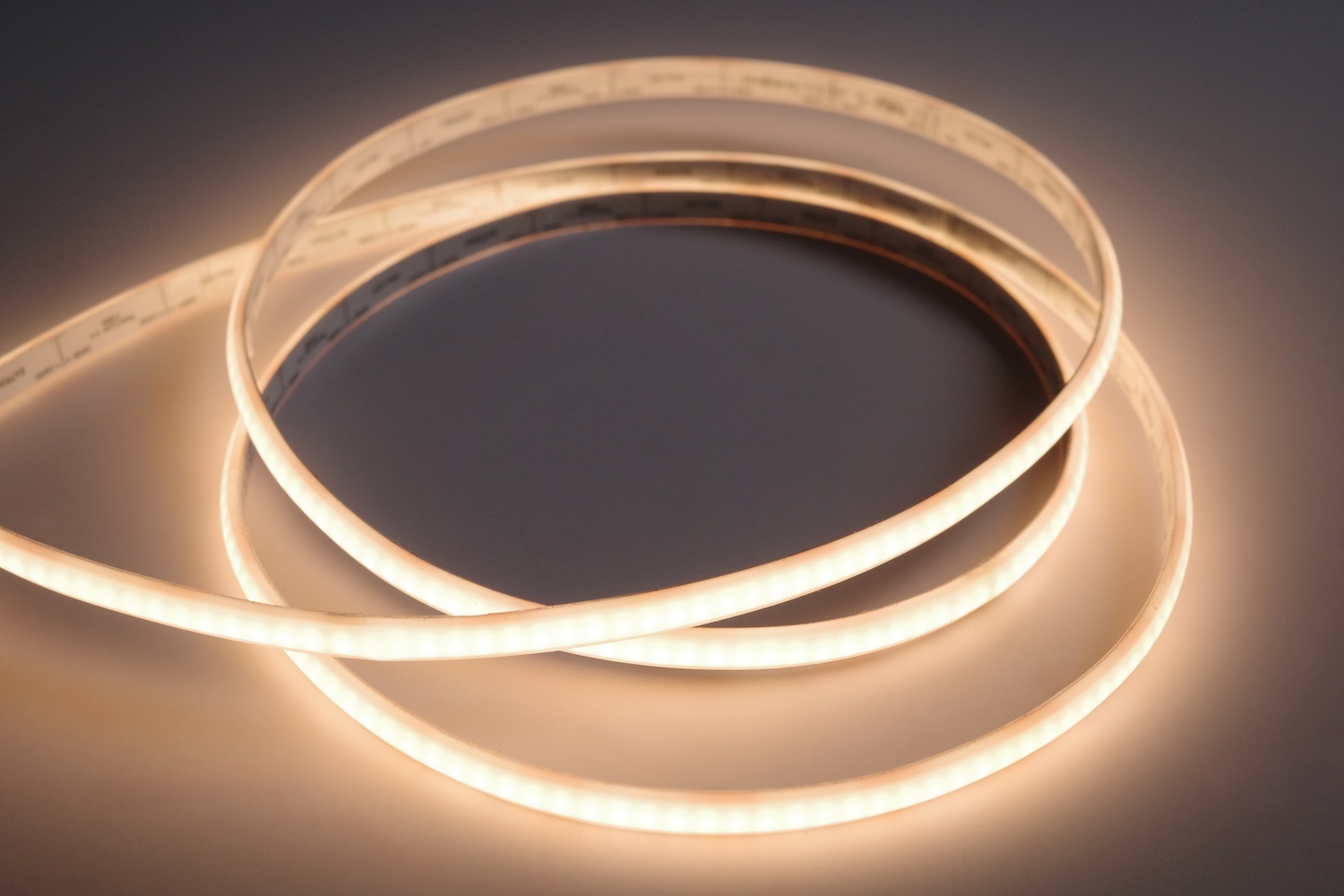

RazorLine™ Neon 300 LED Tape Light
AL-01-40-24XX
RazorLine™ Neon 300 LED Tape Light is only 0.24 in. wide with an integrated diffuser to provide bright, diffused lighting for compact spaces. The built-in silicone diffuser offers hotspot-free light while also protecting the LEDs.
- Stocked Color Temperatures: 2700K, 3000K, 3500K, 4200K, 5000K
- Power Consumption per foot: 4.39 Watts
- LED Chips per foot: 91
- LED Chip Spacing: 0.13 inches
- Tape Width: 0.24 inches
- Tape Height: 0.12 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 0.79 in.
- Maximum Run Length: 10 ft.
- Dimmable: Yes
Quick Specs
- Stocked Color Temperatures: 2700K, 3000K, 3500K, 4200K, 5000K
- Power Consumption per foot: 4.39 Watts
- LED Chips per foot: 91
- LED Chip Spacing: 0.13 inches
- Tape Width: 0.24 inches
- Tape Height: 0.12 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 0.79 in.
- Maximum Run Length: 10 ft.
- Dimmable: Yes
Specification Sheet
Instructions
Literature
Photometrics
Models
| Item Number | Color Temperature | Watts / foot | Lumens / foot | CRI | Maximum Run |
| AL-01-40-2401 | 2700K | 4.39W | 291 | 96 | 10 ft. |
| AL-01-40-2402 | 3000K | 4.39W | 328 | 97 | 10 ft. |
| AL-01-40-2403 | 4200K | 4.39W | 319 | 98 | 10 ft. |
| AL-01-40-2404 | 5000K | 4.39W | 316 | 98 | 10 ft. |
| AL-01-40-2408 | 3500K | 4.39W | 309 | 97 | 10 ft. |
