New

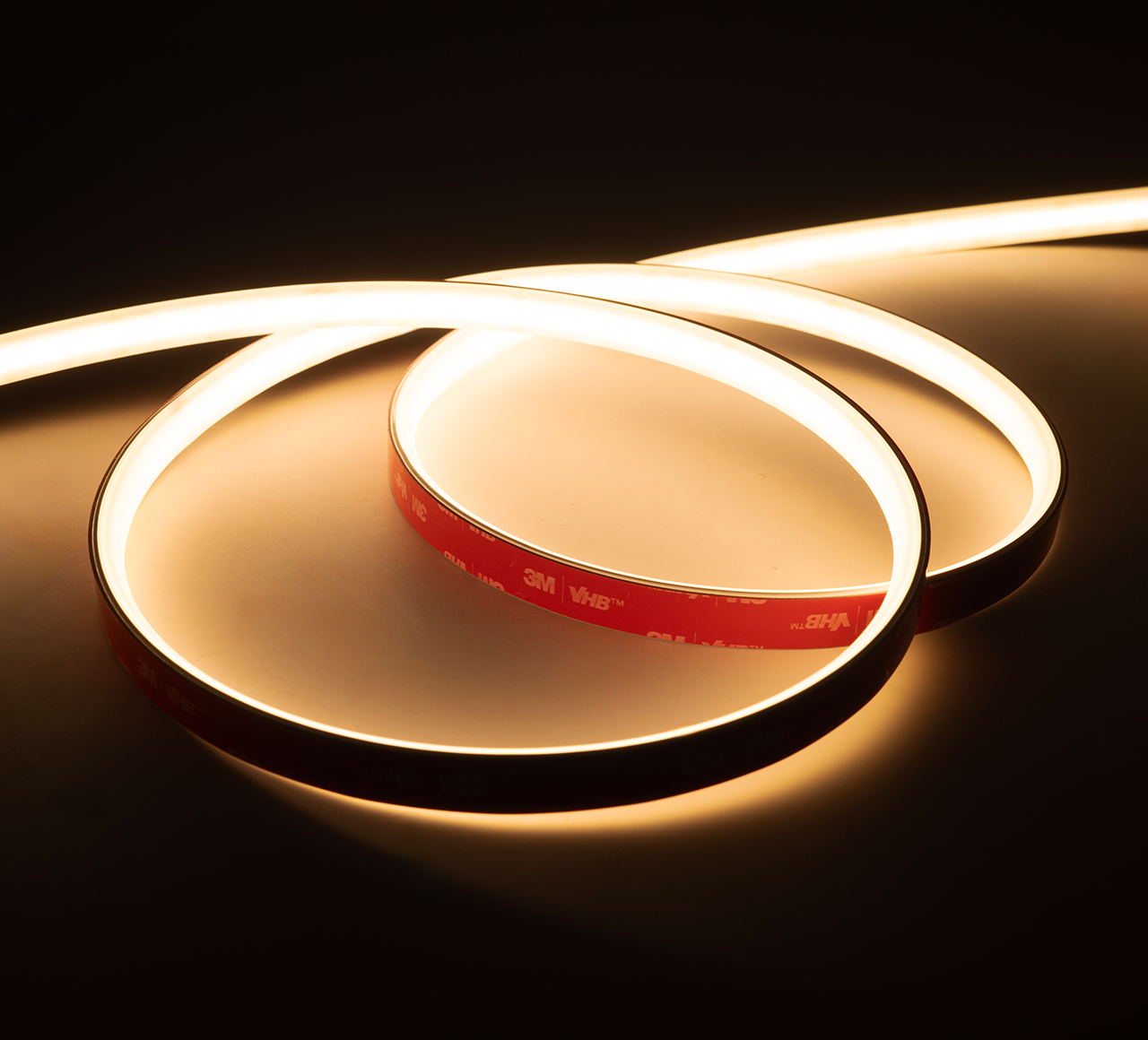

ThermaLine™ 3 High-Temperature LED Tape Light

AL-01-65-XXXX

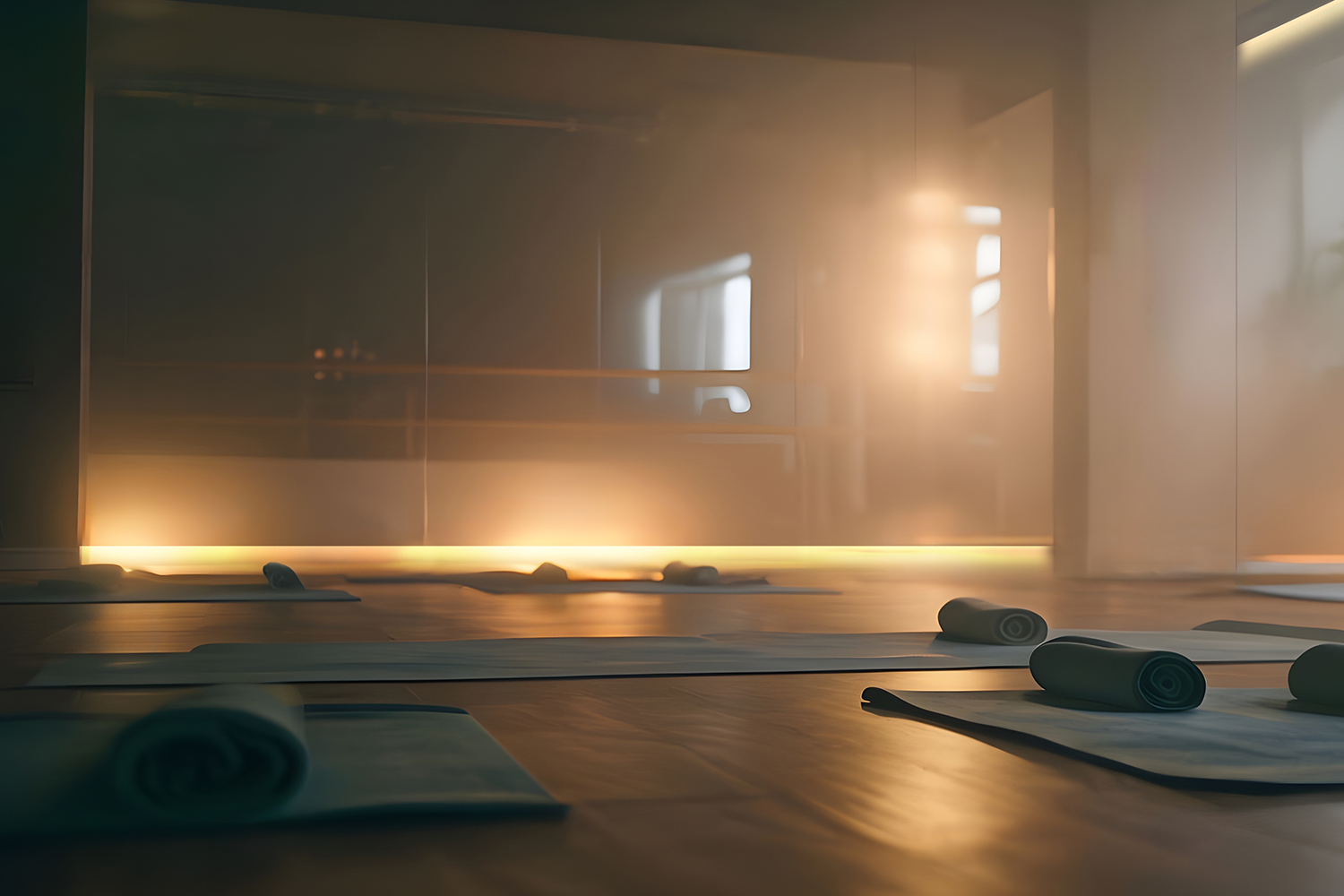

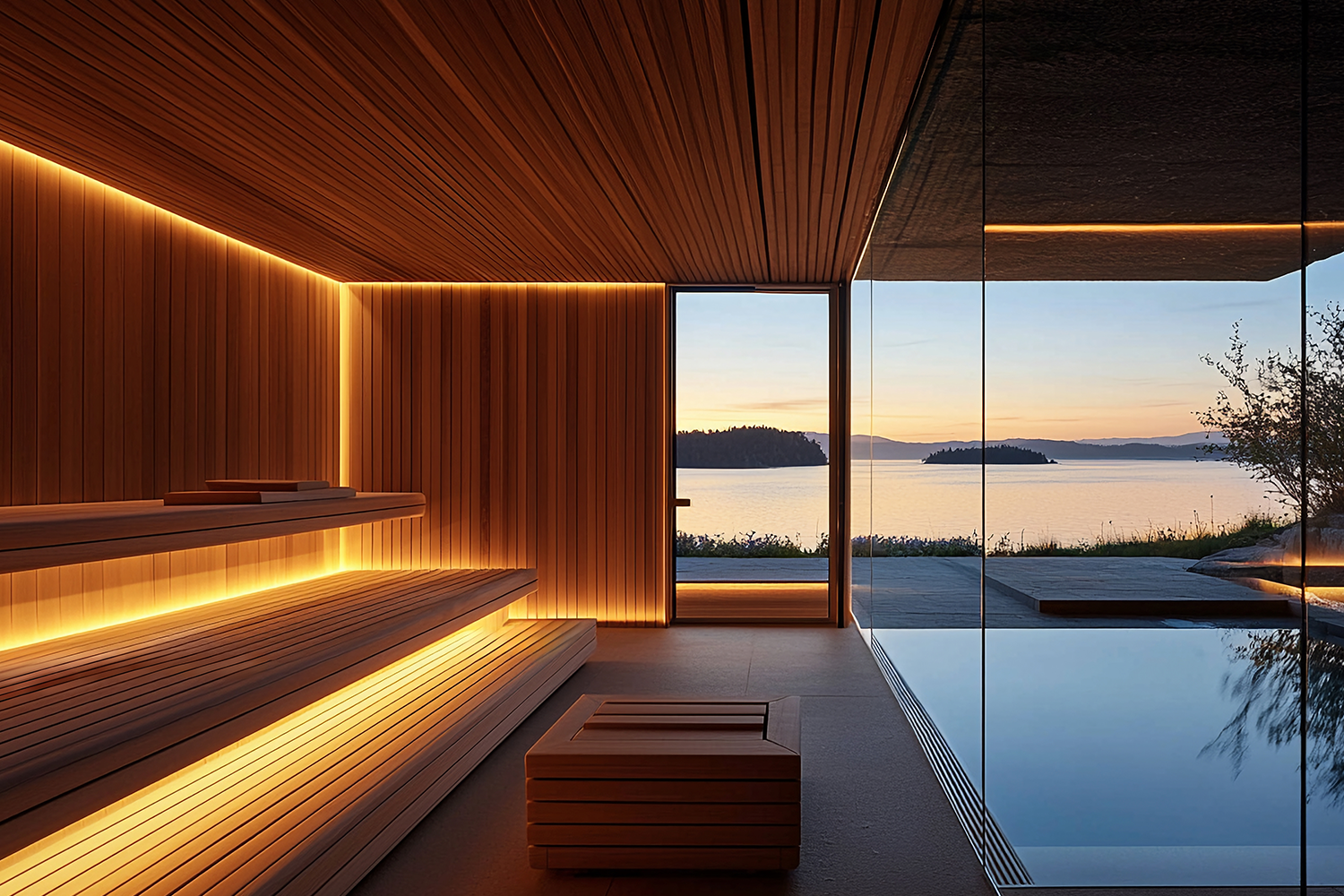

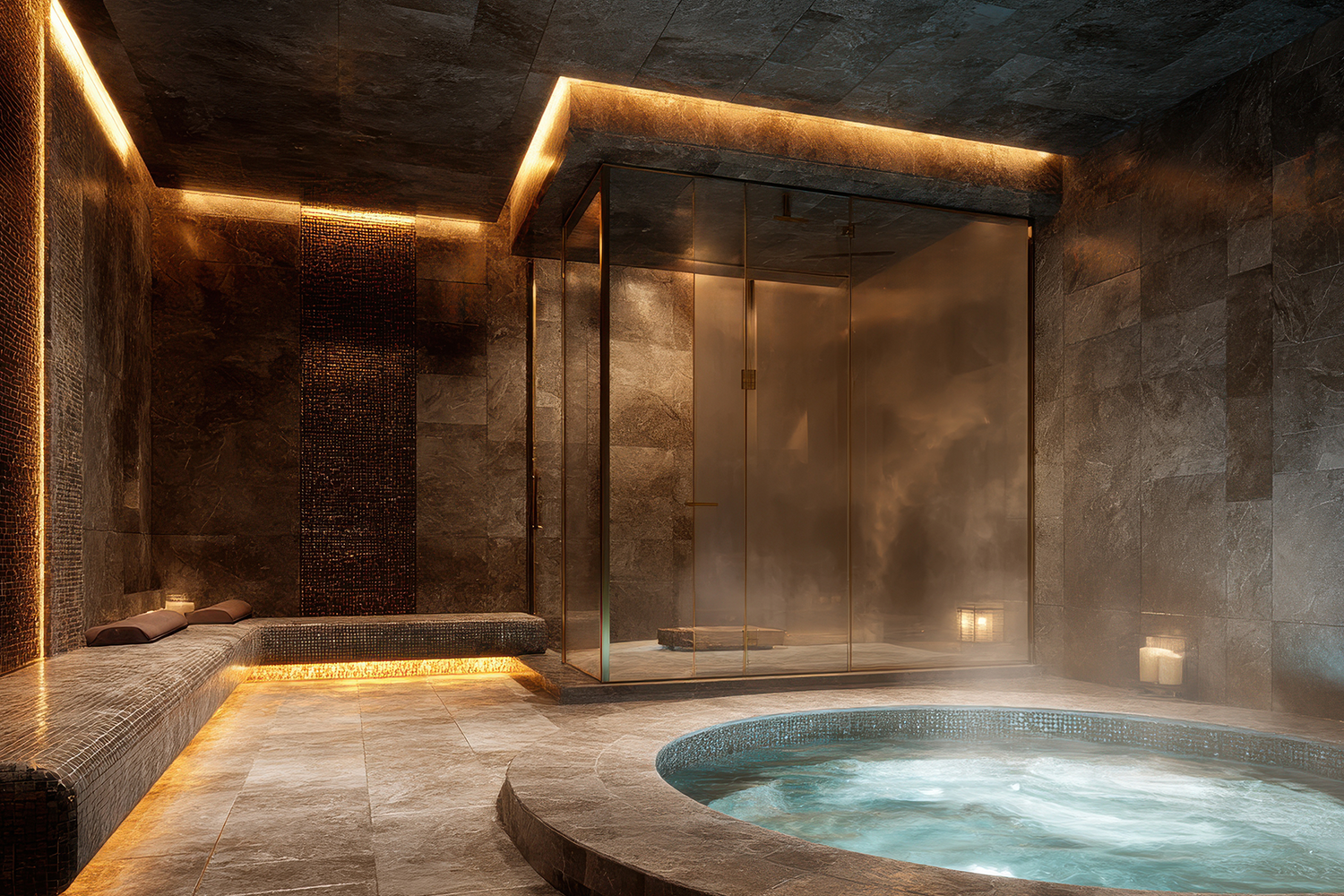

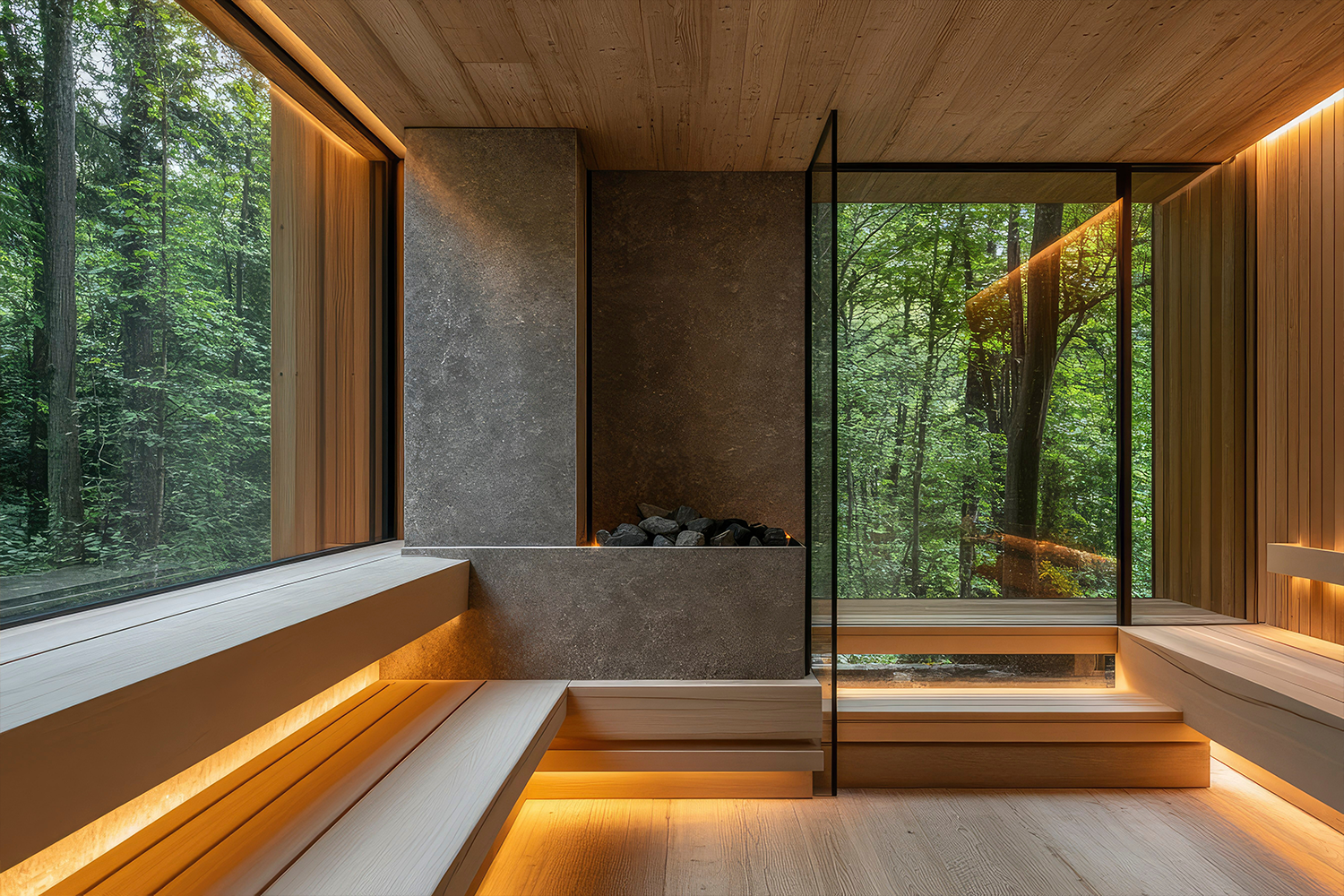

ThermaLine™ 3 High-Temperature LED Tape Light is an IP67-rated sauna tape light engineered to perform in environments where traditional LEDs can’t. Fully encased in heat-resistant silicone and with premium gold contact points, ThermaLine 3 ensures long-term reliability and optimal performance. Its frosted surface enhances light diffusion and resists dust buildup, making it ideal for steam rooms, saunas, fireplaces, hot yoga studios, and demanding commercial kitchen environments.

  • Gold contact points for superior conductivity and corrosion resistance
  • IP67 rating through our  Build-to-Order program for moisture protection
  • Frosted silicone surface for even light distribution and dust resistance
  • Withstands high-temperature environments with robust thermal resilience
  • Integrated heatsink for thermal stability and LED longevity
Get more info
Quick Specs Specification Sheet Instructions Compatibility Chart IES Files Photometrics
  • Color Temperature: 2700K, 3000K, 3500K, 4000K
  • Power Consumption per foot: 3W/ft
  • Input Voltage: 24V
  • Diode Type: COB
  • Diodes per Foot: 146
  • Diode Spacing: 0.082 inches
  • Tape Width: 0.47 inches
  • Tape Height: 0.216 inches
  • Beam Angle: 110°
  • Field Cuttable: every 1.97 inches
  • Maximum Run Length: 16.4 ft.
  • Spool Length: 16.4 ft.
  • Dimmable: Yes
  • Mounting: 3M™ Self-Adhesive Tape (Non-porous)
  • Operating Temperature: 32°F to 248°F
  • Ambient Temperature: -40°F to 221°F
  • Environment: High-Heat, Saunas, Steam rooms
  • IP Rating: IP67
  • Certifications: UL 2108 Listed, RoHS
  • Warranty: 6 Year Limited
Quick Specs
  • Color Temperature: 2700K, 3000K, 3500K, 4000K
  • Power Consumption per foot: 3W/ft
  • Input Voltage: 24V
  • Diode Type: COB
  • Diodes per Foot: 146
  • Diode Spacing: 0.082 inches
  • Tape Width: 0.47 inches
  • Tape Height: 0.216 inches
  • Beam Angle: 110°
  • Field Cuttable: every 1.97 inches
  • Maximum Run Length: 16.4 ft.
  • Spool Length: 16.4 ft.
  • Dimmable: Yes
  • Mounting: 3M™ Self-Adhesive Tape (Non-porous)
  • Operating Temperature: 32°F to 248°F
  • Ambient Temperature: -40°F to 221°F
  • Environment: High-Heat, Saunas, Steam rooms
  • IP Rating: IP67
  • Certifications: UL 2108 Listed, RoHS
  • Warranty: 6 Year Limited
Specification Sheet
Instructions
Compatibility Chart
IES Files
Photometrics
Models
16.4 ft. Spool Item Number Voltage Color Temperature Watts / foot Lumens / foot CRI Maximum Run
AL-01-65-2461 24V 2700K 3W 281 90+ 16.4 ft.
AL-01-65-2462 24V 3000K 3W 310 90+ 16.4 ft.
AL-01-65-2468 24V 3500K 3W 316 94 16.4 ft.
AL-01-65-2463 24V 4000K 3W 338 90+ 16.4 ft.
