PrimaPanel Flexible LED Sheet

AL-01-90-24XX

PrimaPanel Silver Award
BrightStar Awards

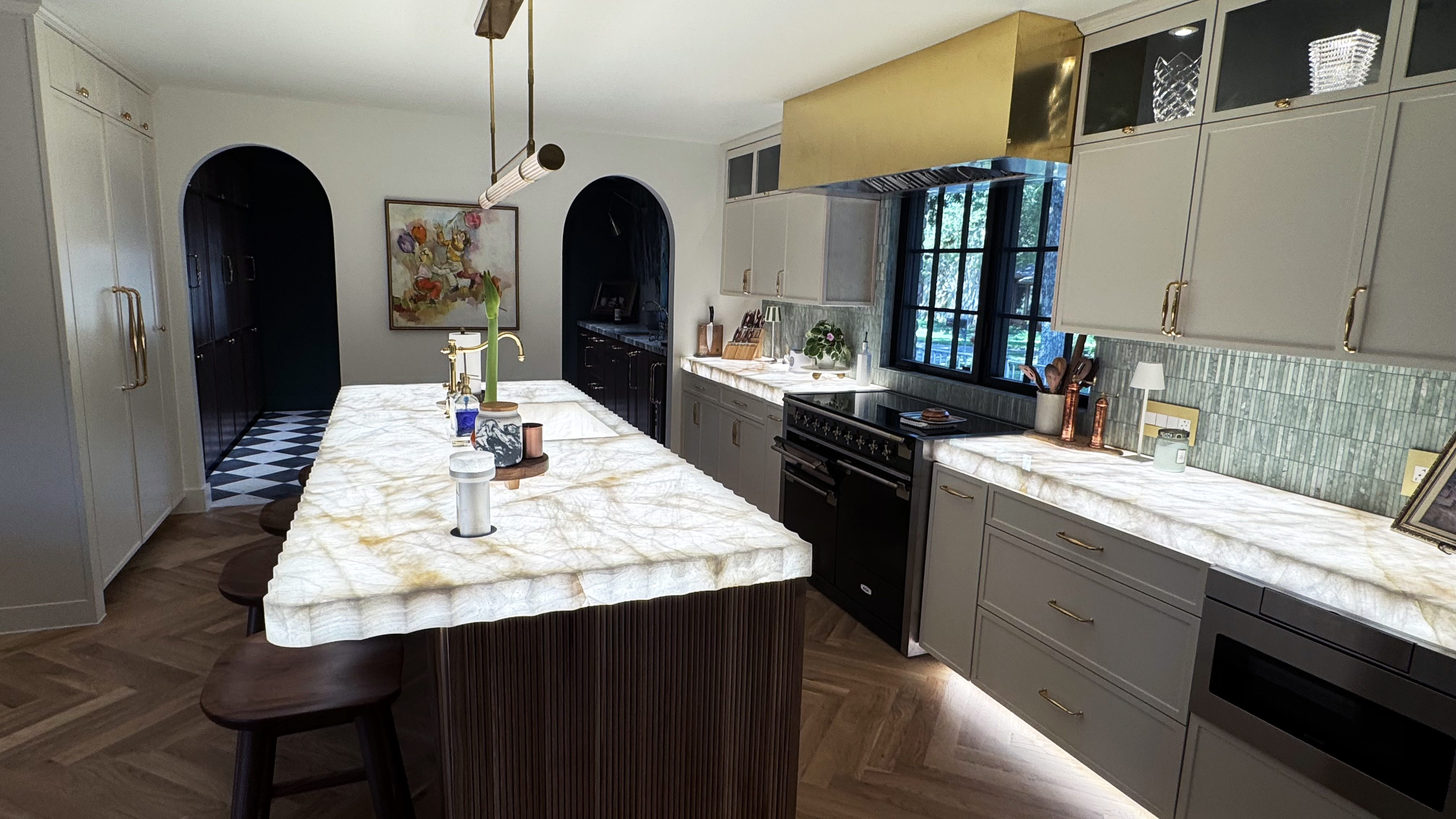

The PrimaPanel LED Sheet is a fully modular, flexible, water-resistant, and cuttable LED sheet for backlighting applications such as displays, translucent materials, showcases, and more. The LED sheet can create a hotspot-free look and offers easy installation with 3M™ adhesive tape or by using nails or screws at the designated areas on the sheet.

NEW & IMPROVED

  • Now coated with an IP64-rated water-resistant nano-coating to fit any installation needs
  • New acrylic standoff accessory offers a complete backlighting solution that ensures even illumination

SAME QUALITY PRODUCT

  • High density of LED chips contributes to a smooth distribution of light
  • Can be cut vertically, horizontally or at a 45°angle
  • High CRI of 95+ (3000K-5000K) and 89+ (6500K) for excellent color rendering

Includes the following accessories:

  • Two 3 in. jumper cables
  • Two 6 in. hardwire power cables
  • Six screws

Optional accessories:

  • 1 in. acrylic standoff – 4-pack
  • .75 in. acrylic standoff – 4 pack
  • .50 in. acrylic standoff – 4-pack
Get more info
Quick Specs Specification Sheet Instructions Literature IES Files Photometrics
  • Color Temperature: 3000K, 4000K, 5000K, 6500K
  • 24V Power Consumption per ft.: 16.6 Watts
  • Input Voltage: 24V DC
  • Diodes per sheet: 200
  • Diode Spacing: 0.94 inches
  • Sheet Height: 0.07 inches
  • Beam Angle: 120°
  • Cutting Size: 0.94 x 0.94 in. (Horizontal/Vertical)/0.67 x 0.67 in. (Diagonal)
  • Maximum Run: 7 sheets
  • Dimmable: Yes
  • Diode Type: 2835 SMD
  • Mounting: Screws, nails and 3M™ VHB™ Adhesive Backing
  • Operating Temperature: -13° F to 140° F
  • Sheet Dimensions (LxWxH): 18.9 x 9.45 x 0.07 in.
  • Maximum Bend Radius: 1 inch
  • Location: Indoor, Outdoor (IP64)
  • Certifications: UL Listed
  • Warranty: 6 Year Limited

PrimaPanel Photometrics

Quick Specs
  • Color Temperature: 3000K, 4000K, 5000K, 6500K
  • 24V Power Consumption per ft.: 16.6 Watts
  • Input Voltage: 24V DC
  • Diodes per sheet: 200
  • Diode Spacing: 0.94 inches
  • Sheet Height: 0.07 inches
  • Beam Angle: 120°
  • Cutting Size: 0.94 x 0.94 in. (Horizontal/Vertical)/0.67 x 0.67 in. (Diagonal)
  • Maximum Run: 7 sheets
  • Dimmable: Yes
  • Diode Type: 2835 SMD
  • Mounting: Screws, nails and 3M™ VHB™ Adhesive Backing
  • Operating Temperature: -13° F to 140° F
  • Sheet Dimensions (LxWxH): 18.9 x 9.45 x 0.07 in.
  • Maximum Bend Radius: 1 inch
  • Location: Indoor, Outdoor (IP64)
  • Certifications: UL Listed
  • Warranty: 6 Year Limited
Specification Sheet
Instructions
Literature
IES Files
Photometrics

PrimaPanel Photometrics

Models
Item Number Voltage Color Temperature Lumens per sheet CRI
AL-01-90-2402 24V DC 3000K 1474 95
AL-01-90-2403 24V DC 4000K 1508 96
AL-01-90-2404 24V DC 5000K 1534 96
AL-01-90-2409 24V DC 6500K 1502 90
Item Number Description
AL-01-90-99STND100-4 Acrylic Standoff - Pack of 4 - 1 in. - 8 screws
AL-01-90-99STND075-4 Acrylic Standoff - Pack of 4 - 0.75 in. - 8 screws
AL-01-90-99STND050-4 Acrylic Standoff - Pack of 4 - 0.5 in. - 8 screws
