PrimaLine 3 Tape Light

AL-01-02-XXXX

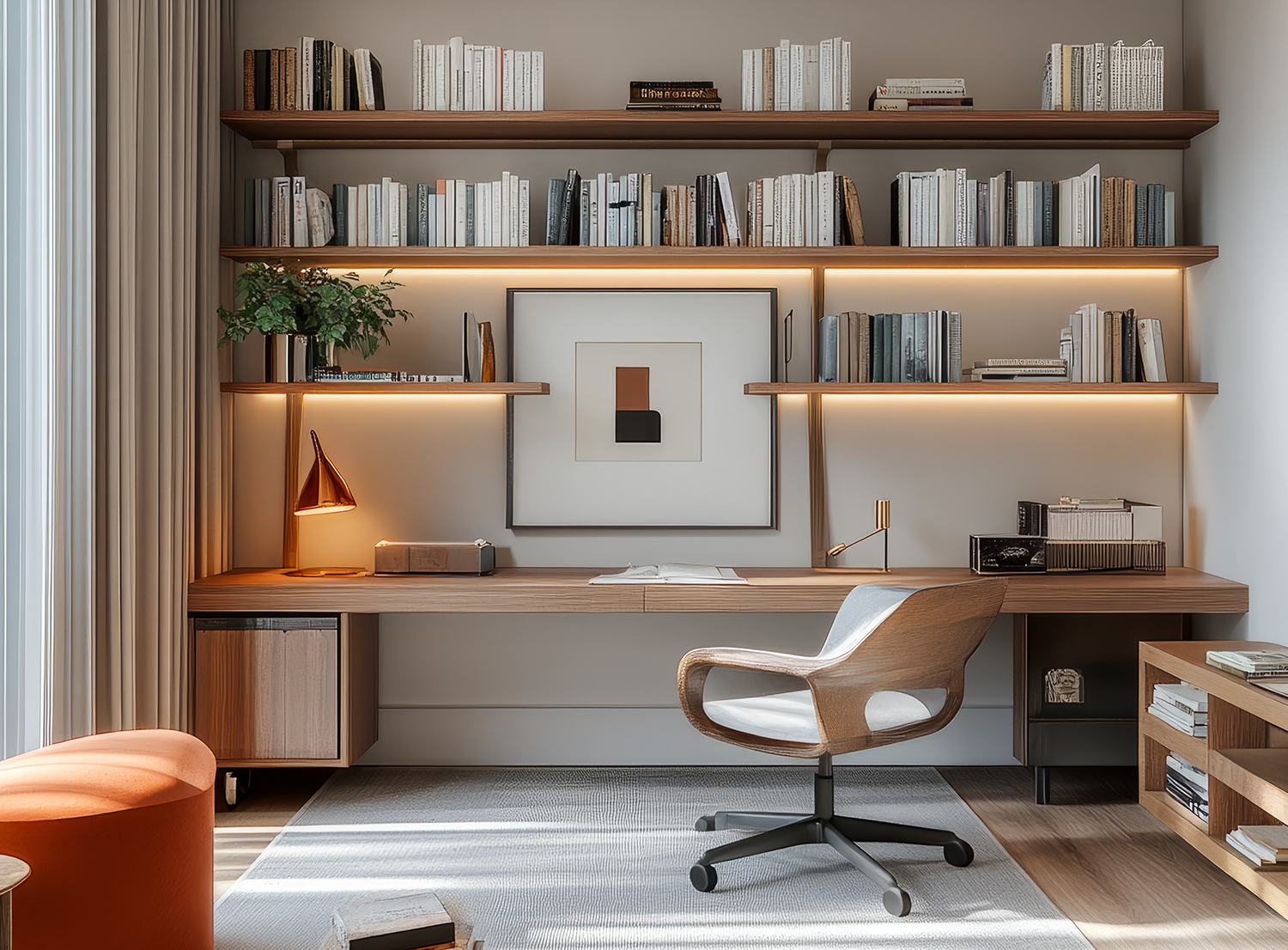

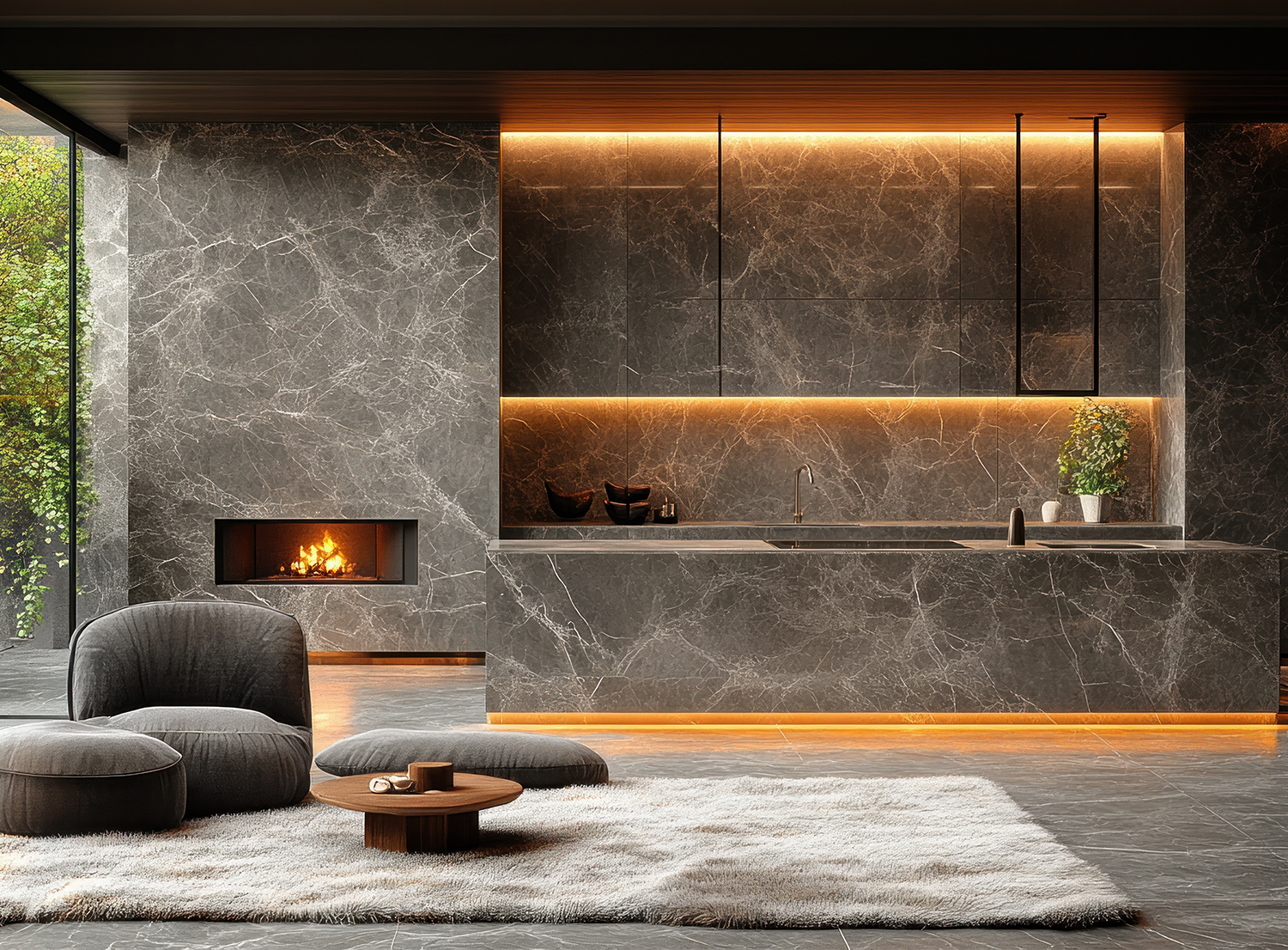

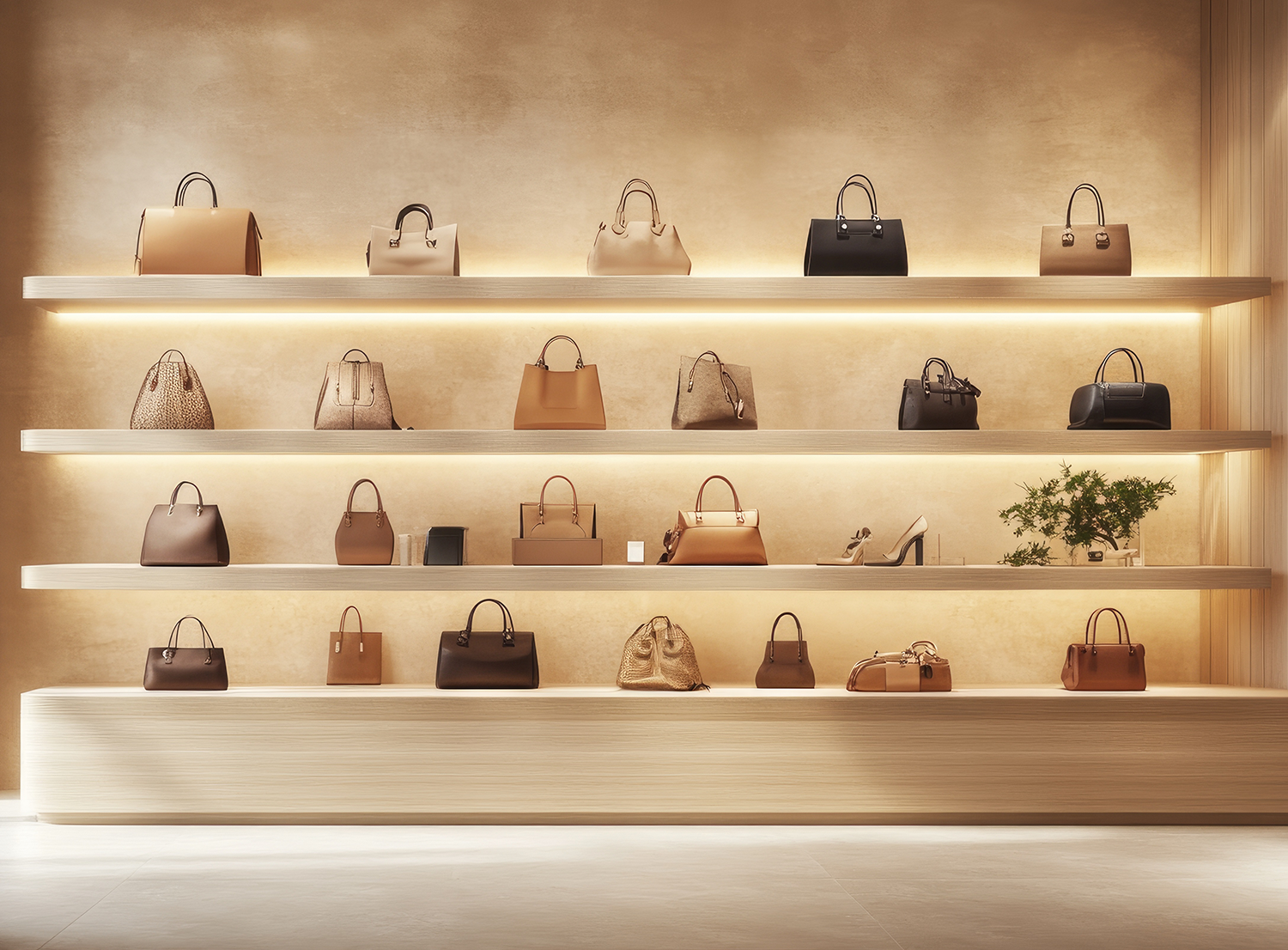

PrimaLine® 3 offers high-output, dimmable LED task lighting at just 3 watts per foot, and is a perfect multi-task light for indoor applications. This UL Listed tape light is designed for medium to close application task lighting, accenting, and workspace lighting, as well as LED retail, display, cabinet, and shelf applications. A high density of LED chips means a more even, smoother line of light with fewer hotspots than other LED strips.

Get more info
Quick Specs Specification Sheet Instructions Compatibility Chart IES Files Photometrics
  • Stocked Color Temperatures: 2200K, 2400K, 2700K, 3000K, 3500K, 4200K, 5000K, red, blue, green
  • Power Consumption per foot: 2.88 Watts
  • Input Voltage: 12/24V DC
  • Diodes per foot: 36
  • Diode Spacing: 0.3 inches
  • Tape Width: 0.32 inches
  • Tape Height: 0.1 inches
  • Beam Angle: 120°
  • 12V Field Cuttable (UL 2108): Every 1 inch
  • 24V Field Cuttable (UL 2108): Every 2 inches
  • Maximum Run Length: 21 ft. (12V), 33 ft. (24V)
  • Dimmable: Yes
  • Diode Type: 3528 SMD
  • Mounting: 3M™ Self-Adhesive Tape (non-porous)
  • Operating Temperature: -13° F to 140° F
  • Location: Indoor, Dry
  • Certifications: UL Listed, RoHS, UL 2108
  • Standards: Certified to the CA Energy Commission in accordance with the Title 24 JA8 2016 std. (2700K – 4200K models only)
  • Warranty: 6 Year Limited

PrimaLine 3 Photometrics

Quick Specs
  • Stocked Color Temperatures: 2200K, 2400K, 2700K, 3000K, 3500K, 4200K, 5000K, red, blue, green
  • Power Consumption per foot: 2.88 Watts
  • Input Voltage: 12/24V DC
  • Diodes per foot: 36
  • Diode Spacing: 0.3 inches
  • Tape Width: 0.32 inches
  • Tape Height: 0.1 inches
  • Beam Angle: 120°
  • 12V Field Cuttable (UL 2108): Every 1 inch
  • 24V Field Cuttable (UL 2108): Every 2 inches
  • Maximum Run Length: 21 ft. (12V), 33 ft. (24V)
  • Dimmable: Yes
  • Diode Type: 3528 SMD
  • Mounting: 3M™ Self-Adhesive Tape (non-porous)
  • Operating Temperature: -13° F to 140° F
  • Location: Indoor, Dry
  • Certifications: UL Listed, RoHS, UL 2108
  • Standards: Certified to the CA Energy Commission in accordance with the Title 24 JA8 2016 std. (2700K – 4200K models only)
  • Warranty: 6 Year Limited
Specification Sheet
Instructions
Compatibility Chart
IES Files
Photometrics

PrimaLine 3 Photometrics

Models
16.4 ft. Spool 50 ft. Spool 100 ft. Spool Voltage Color Temperature Watts per foot Lumens per foot CRI Maximum Run
AL-01-02-1201 AL-01-02-1221 AL-01-02-1241 12V DC 2700K 2.88W 207 98 21 ft.
AL-01-02-1202 AL-01-02-1222 AL-01-02-1242 12V DC 3000K 2.88W 234 98 21 ft.
AL-01-02-1203 AL-01-02-1223 AL-01-02-1243 12V DC 4200K 2.88W 240 97 21 ft.
AL-01-02-1204 AL-01-02-1224 AL-01-02-1244 12V DC 5000K 2.88W 244 96 21 ft.
16.4 ft. Spool 50 ft. Spool 100 ft. Spool Voltage Color Temperature Watts per foot Lumens per foot CRI Maximum Run
AL-01-02-2400 AL-01-02-2420 AL-01-02-2440 24V DC 2200K 2.88W 170 95 33 ft.
AL-01-02-2401 AL-01-02-2421 AL-01-02-2441 24V DC 2700K 2.88W 207 98 33 ft.
AL-01-02-2402 AL-01-02-2422 AL-01-02-2442 24V DC 3000K 2.88W 234 98 33 ft.
AL-01-02-2403 AL-01-02-2423 AL-01-02-2443 24V DC 4200K 2.88W 240 97 33 ft.
AL-01-02-2404 AL-01-02-2424 AL-01-02-2444 24V DC 5000K 2.88W 244 96 33 ft.
AL-01-02-2405 AL-01-02-2425 AL-01-02-2445 24V DC 2400K 2.88W 178 96 33 ft.
AL-01-02-2408 AL-01-02-2428 AL-01-02-2448 24V DC 3500K 2.88W 233 96 33 ft.
20 ft. Spool 100 ft. Spool Voltage Color Watts per foot Lumens per foot CRI Maximum Run
AL-01-02-2411 AL-01-02-2451 24V DC Red 2.88W N/A N/A 33 ft.
AL-01-02-2412 AL-01-02-2452 24V DC Blue 2.88W N/A N/A 33 ft.
AL-01-02-2413 AL-01-02-2453 24V DC Green 2.88W N/A N/A 33 ft.
