Enhanced Versatility

Mudr 1 Aluminum Channel

AL-50-29-XXXX

Offered in two sizes, the Mudr trimless recessed linear LED lighting channels install flush into 5/8-inch drywall to provide seamless integration into ceilings and walls, resulting in clean lines of light. Mudr 1 features a unique, patented lens design allowing for even illumination across the entire surface of the lens from one edge to the other. The flexible silicone lens virtually eliminates visible lens seams for continuous runs up to 200 feet, a unique offering in the architectural lighting space. Powered End Cap Kit and Powered Corner Kit options deliver added flexibility by including everything needed to simplify ordering, streamline installation, and ensure clean, efficient wire management. Mitre cuts are available through the Alloy LED Build-to-Order program.

Get more info
Quick Specs Specification Sheet Instructions Literature Compatibility Chart Order Form

Our aluminum channels are an essential accessory for clean, efficient, and high-impact linear lighting installations. Channels add style and enhanced lighting to any space; they provide protection for LED lights, from moisture, dust, and other elements. Channels also surround the tape light with a thermally balanced heat sink, cooling and prolonging the lifespan of the product.

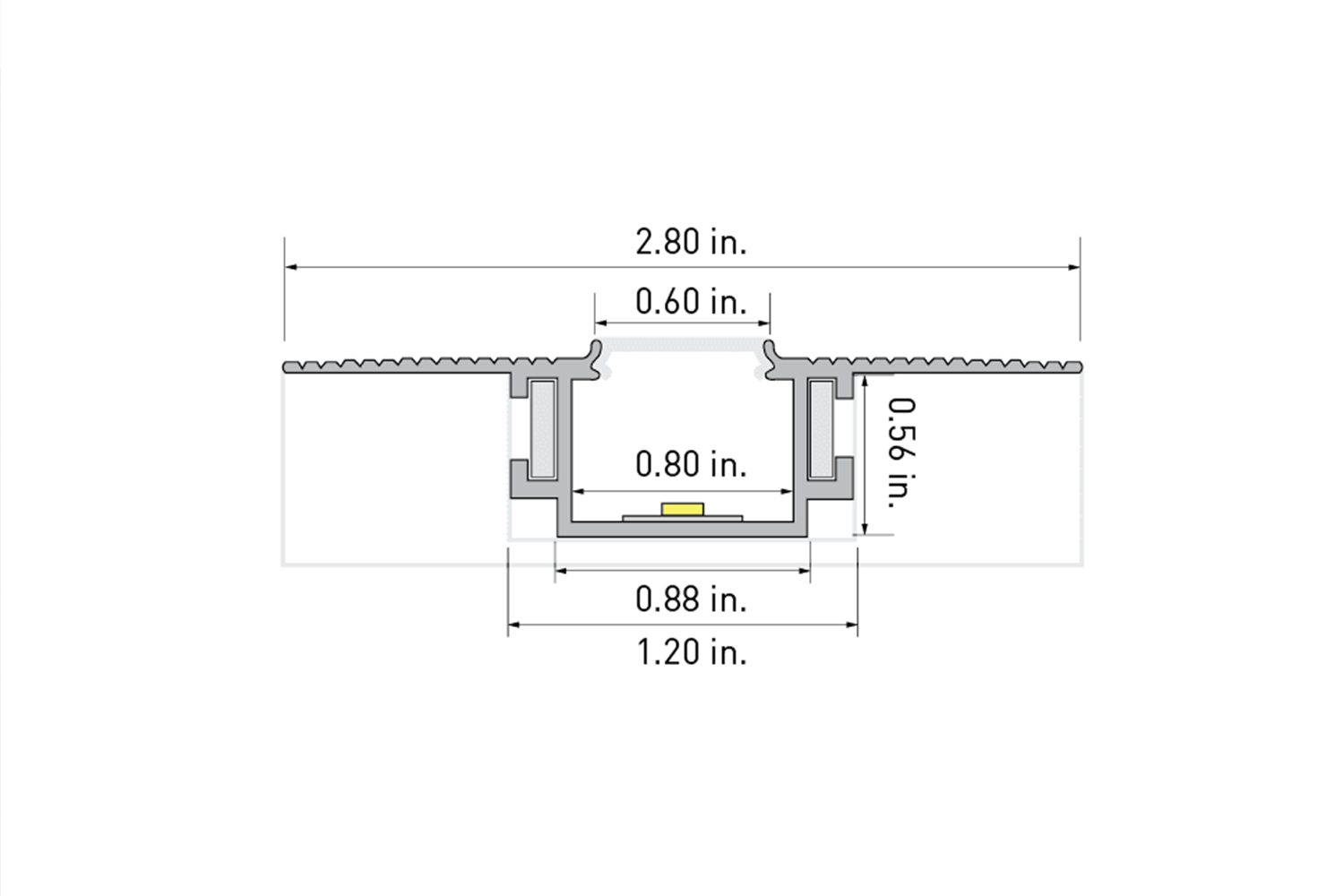

  • Width (outside): 2.80 in.
  • Width (inside): 0.80 in.
  • Depth: 0.56 in.
  • Material: Aluminum
  • Warranty: 6 Year Limited
Quick Specs

Our aluminum channels are an essential accessory for clean, efficient, and high-impact linear lighting installations. Channels add style and enhanced lighting to any space; they provide protection for LED lights, from moisture, dust, and other elements. Channels also surround the tape light with a thermally balanced heat sink, cooling and prolonging the lifespan of the product.

  • Width (outside): 2.80 in.
  • Width (inside): 0.80 in.
  • Depth: 0.56 in.
  • Material: Aluminum
  • Warranty: 6 Year Limited
Specification Sheet
Instructions
Literature
Compatibility Chart
Order Form
Models
Item Number Description
AL-50-29-0111-AL-KIT 4 ft. channel kit includes 1 channel and 1 frosted diffuser cover
AL-50-29-0115-AL-KIT 7 ft. channel kit includes 1 channel and 1 frosted diffuser cover
AL-50-29-9932-SFR-CU-FT 1 ft. frosted silicone cover
AL-50-29-9992-AL Straight connecting bracket - 2-pack (includes 4 pre-threaded set screws)
AL-50-29-9993-AL L bracket for mitred corners - 2-pack (includes 4 pre-threaded set screws)
AL-50-29-9994-AL L bracket for beveled corners - 2-pack (includes 4 pre-threaded set screws)
AL-50-29-NON-POWERED-EC Non-powered end cap - 1-pack (includes 2 universal straight connectors and set screws)
AL-50-29-POWERED-CORNER-KIT Powered corner kit includes 1 powered corner with cover and hex screws, 1 mounting plate with TSGB and mounting screws, 4 universal straight connectors with set screws, 2 wire strain reliefs, 2 nipple pipes, 2 lock washers, and 2 hex nuts
AL-50-29-POWERED-END-CAP Powered end cap - 1-pack (includes 1 powered end cap with cover and hex screws, 2 universal straight connectors with set screws, 1 wire strain relief, 1 nipple pipe, 1 lock washer, and 1 hex nut)
AL-50-29-POWERED-END-CAP-KIT Powered end cap kit includes 1 powered end cap with cover and screws, 1 wire strain relief, 1 nipple pipe, 1 lock washer, and 1 hex nut
