Radialux Neon 200 TB RGBW LED Tape Light

AL-02-72-2401-TB

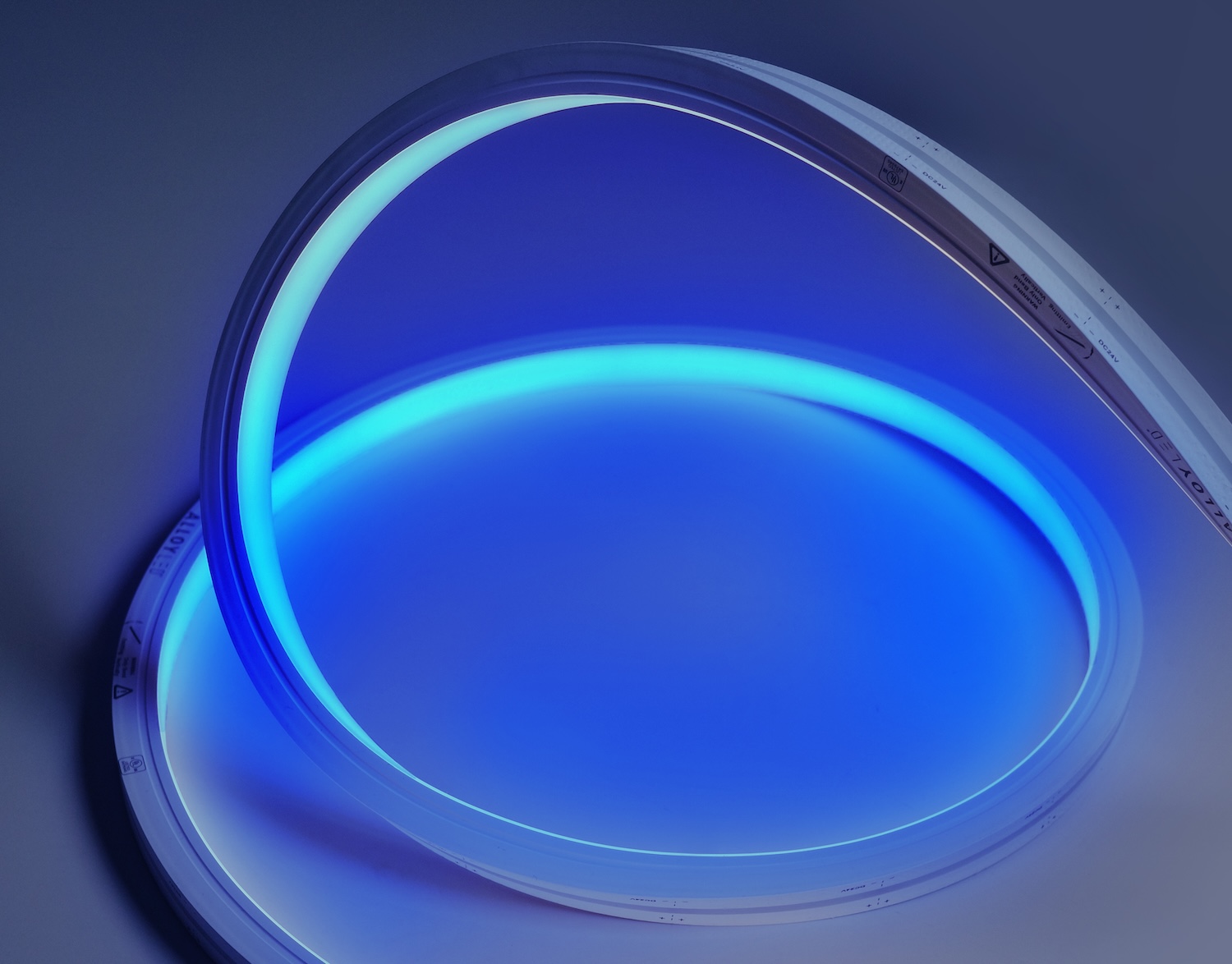

Radiulux Neon RGBW LED Tape Light is the next generation of color-changing, flexible linear lighting, which faithfully replicates the look of traditional neon. With a rugged and super-flexible silicone housing, Radiulux Neon offers an ultimate number of design options with 100% hotspot-free lighting and a tight bend radius in both top-bending and side-bending applications. With an IP67 rating and silicone end caps, it can be used for dynamic curved installations with continuous and even lighting in both indoor and outdoor locations in dry and wet conditions.

  • Total color control
  • Shines from the top
  • Bends upwards and downwards
  • Rugged silicone housing for long-life
  • Variety of mounting options
  • Dust-resistant coating
  • Factory-assembled lengths up to 16.4 feet
  • UL Listed
Get more info
Quick Specs Specification Sheet Instructions Literature Photometrics Order Form
  • Power Consumption per foot: 4.39 Watts
  • Input Voltage: 24V DC
  • Tape Width: 0.51 inches
  • Tape Height: 0.47 inches
  • Beam Angle: 120°
  • Bend Radius: 2.36 inches
  • Cut-points: every 2.46 inches
  • Field Cuttable: UL Listed 2108
  • Maximum Run Length: 16.4 ft.
  • Dimmable: Yes (with color controller)
  • Ambient Temperature: -4° F to 113° F
  • Spool Lengths: 16.4 ft.
  • Location: Indoor/Outdoor (IP67); Dry/Wet
  • Certifications: UL Listed, UL 2108, CE, RoHS
  • Warranty: 5 Year Limited

Radialux Neon 200 TB Photometrics

Quick Specs
  • Power Consumption per foot: 4.39 Watts
  • Input Voltage: 24V DC
  • Tape Width: 0.51 inches
  • Tape Height: 0.47 inches
  • Beam Angle: 120°
  • Bend Radius: 2.36 inches
  • Cut-points: every 2.46 inches
  • Field Cuttable: UL Listed 2108
  • Maximum Run Length: 16.4 ft.
  • Dimmable: Yes (with color controller)
  • Ambient Temperature: -4° F to 113° F
  • Spool Lengths: 16.4 ft.
  • Location: Indoor/Outdoor (IP67); Dry/Wet
  • Certifications: UL Listed, UL 2108, CE, RoHS
  • Warranty: 5 Year Limited
Specification Sheet
Instructions
Literature
Photometrics

Radialux Neon 200 TB Photometrics

Order Form
Models
16.4 ft. Spool Item Number Voltage Watts / foot Lumens / foot CRI Maximum Run
AL-02-72-2401-TB 24V DC 4.39W 143 95 16.4 ft.
Accessories
Item Number Description Length Quantity
AL-02-72-9923-AL Aluminum Mounting Track 3.3 ft. 1
AL-02-72-9930 Flexible Mounting Track 1.64 ft. 1
AL-02-72-9961 Silicone End-Caps (Includes 1 Open, 1 Closed - White) N/A 1
AL-02-72-9966 Silicone End-Caps (Includes 10 Open, 10 Closed - White) N/A 10
AL-02-72-9961-BS Silicone End Caps - Bottom Side (Includes 1 Open, 1 Closed - White) N/A 1
AL-02-72-9966-BS Silicone End Caps - Bottom Side (Includes 10 Open, 10 Closed - White) N/A 10
AL-02-72-9961-DS Silicone End Caps - Straight Side (Includes 1 Open, 1 Closed - White) N/A 1
AL-02-72-9966-DS Silicone End Caps - Straight Side (Includes 10 Open, 10 Closed - White) N/A 10
AL-02-72-9981 Aluminum Mounting Clips/Screws - Pack of 1 N/A 1
AL-02-72-9986 Aluminum Mounting Clips/Screws - Pack of 10 N/A 10
