VariTune™ 2.7 LP Tunable Tape Light
AL-01-87-XXXX
VariTune™ 2.7 LP Tunable Tape Light is a low-profile tunable white LED tape light designed to deliver precise, dynamic white light in a compact form. Featuring a wide tuning range from warm 2700K to a crisp 6000K and a high 95+ CRI, this tape light delivers exceptional color quality and flexibility for residential or commercial applications.
With a tightly spaced diode pitch and narrow PCB, the VariTune™ 2.7 LP is hotspot-free when paired with most Alloy LED channels.
- Stocked Color Temperatures: 2700K~6000K
- Power Consumption per foot: 2.7W
- LED Chips per foot: 63
- LED Chip Spacing: 0.19 inches
- Tape Width: 0.31 inches
- Tape Height: 0.1 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 1.51 in.
- Maximum Run Length: 36 ft.
- Dimmable: Yes
Quick Specs
- Stocked Color Temperatures: 2700K~6000K
- Power Consumption per foot: 2.7W
- LED Chips per foot: 63
- LED Chip Spacing: 0.19 inches
- Tape Width: 0.31 inches
- Tape Height: 0.1 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 1.51 in.
- Maximum Run Length: 36 ft.
- Dimmable: Yes
Specification Sheet
Instructions
Literature
Compatibility Chart
Photometrics
Models
| 20 ft. Spool | Voltage | Color Temperature | Watts per foot | Lumens per foot | CRI | Maximum Run |
| AL-01-87-2401 | 24V DC | 2700K~6000K | 2.7W | 269 | 95 | 36 ft. |
| Item Number | Description |
| AL-01-87-9901 | Tape to Tape Connector |
| AL-01-87-9901-10 | Tape to Tape Connector - Pack of 10 |

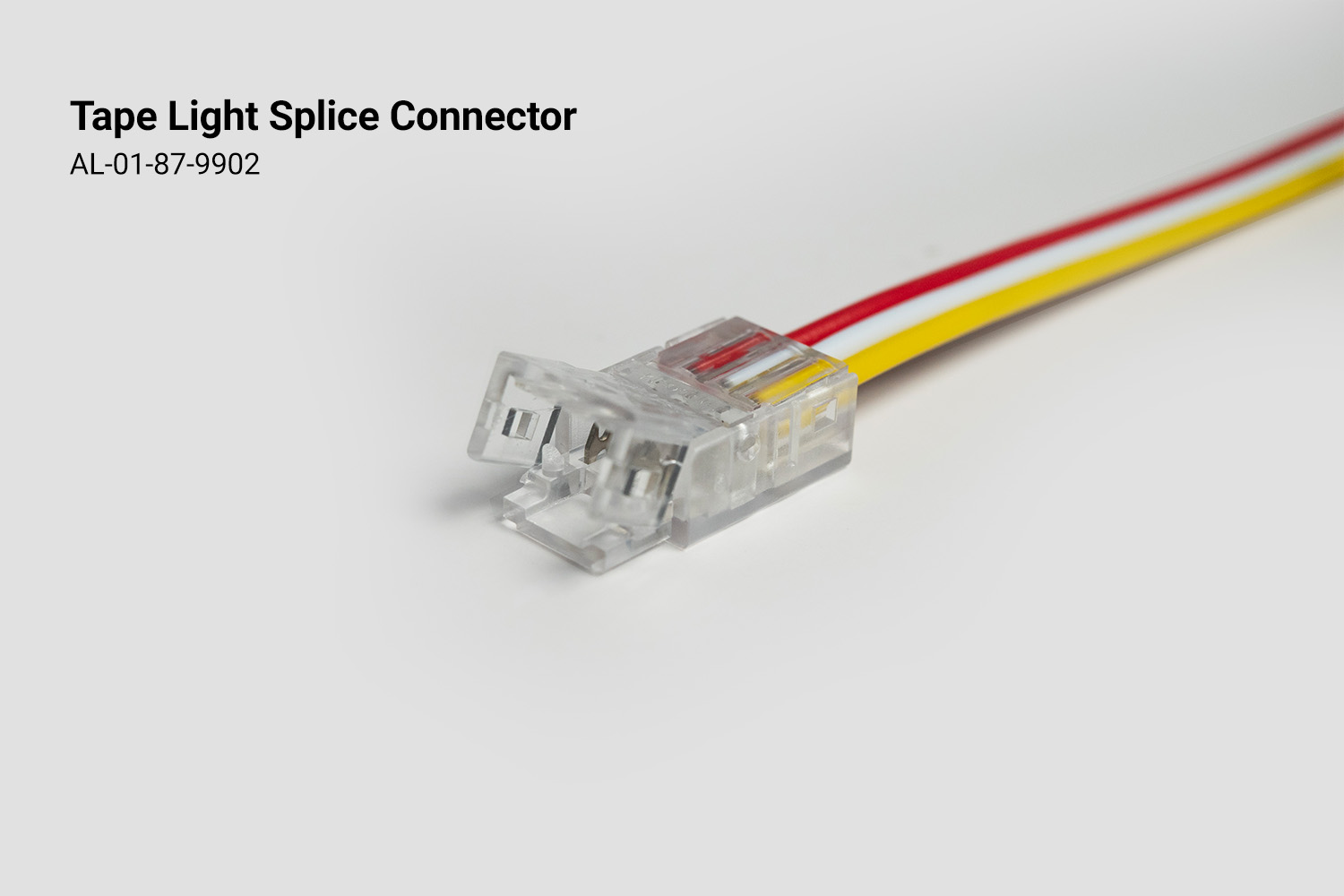

| AL-01-87-9902 | Tape Light Splice Connector |
| AL-01-87-9902-10 | Tape Light Splice Connector - Pack of 10 |
| AL-01-99-9988-BL-CU-IN | 20 AWG UL2464 3-Conductor Wire - Black |
| AL-01-99-9988-WH-CU-IN | 20 AWG UL2464 3-Conductor Wire - White |
