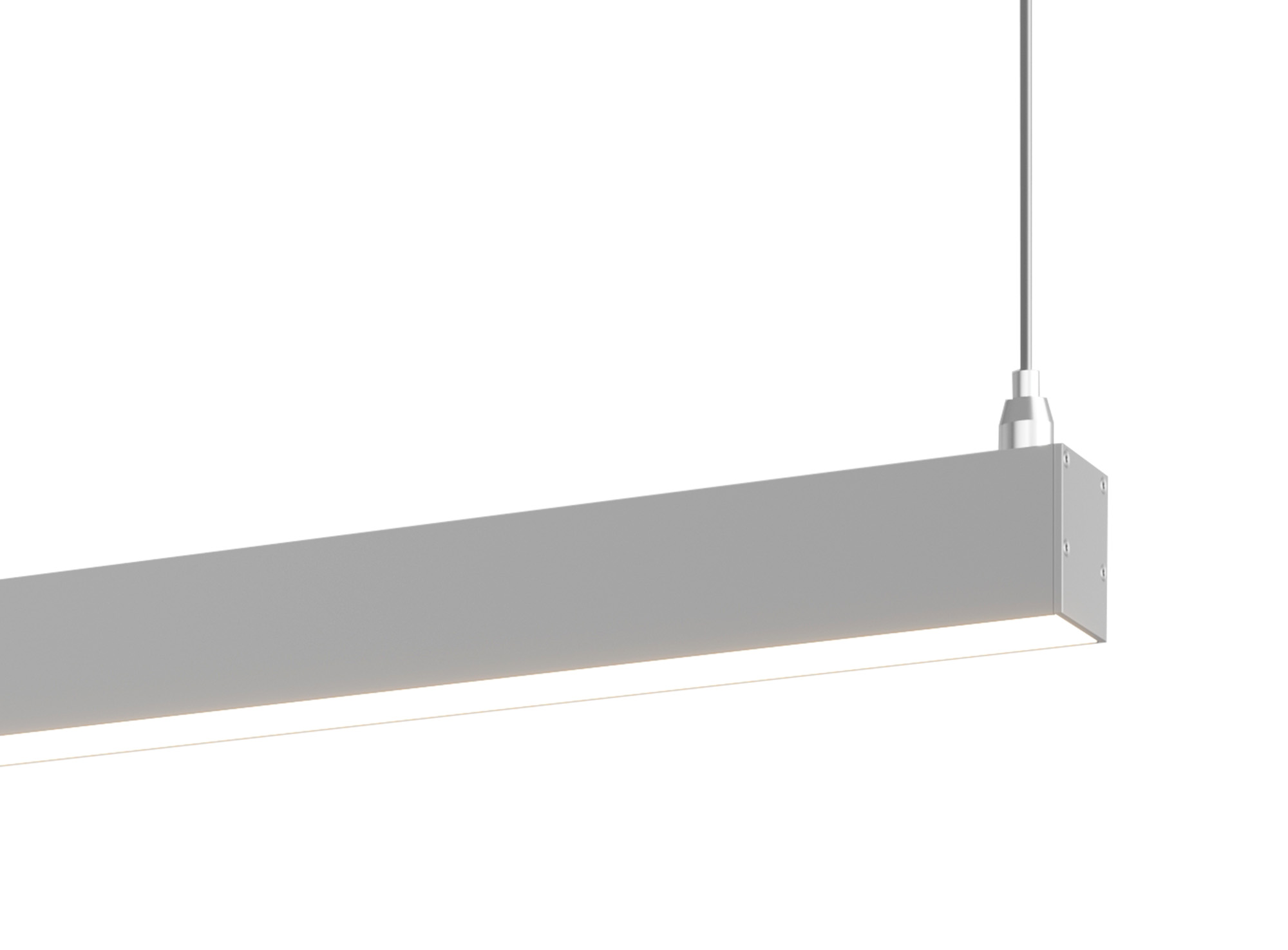

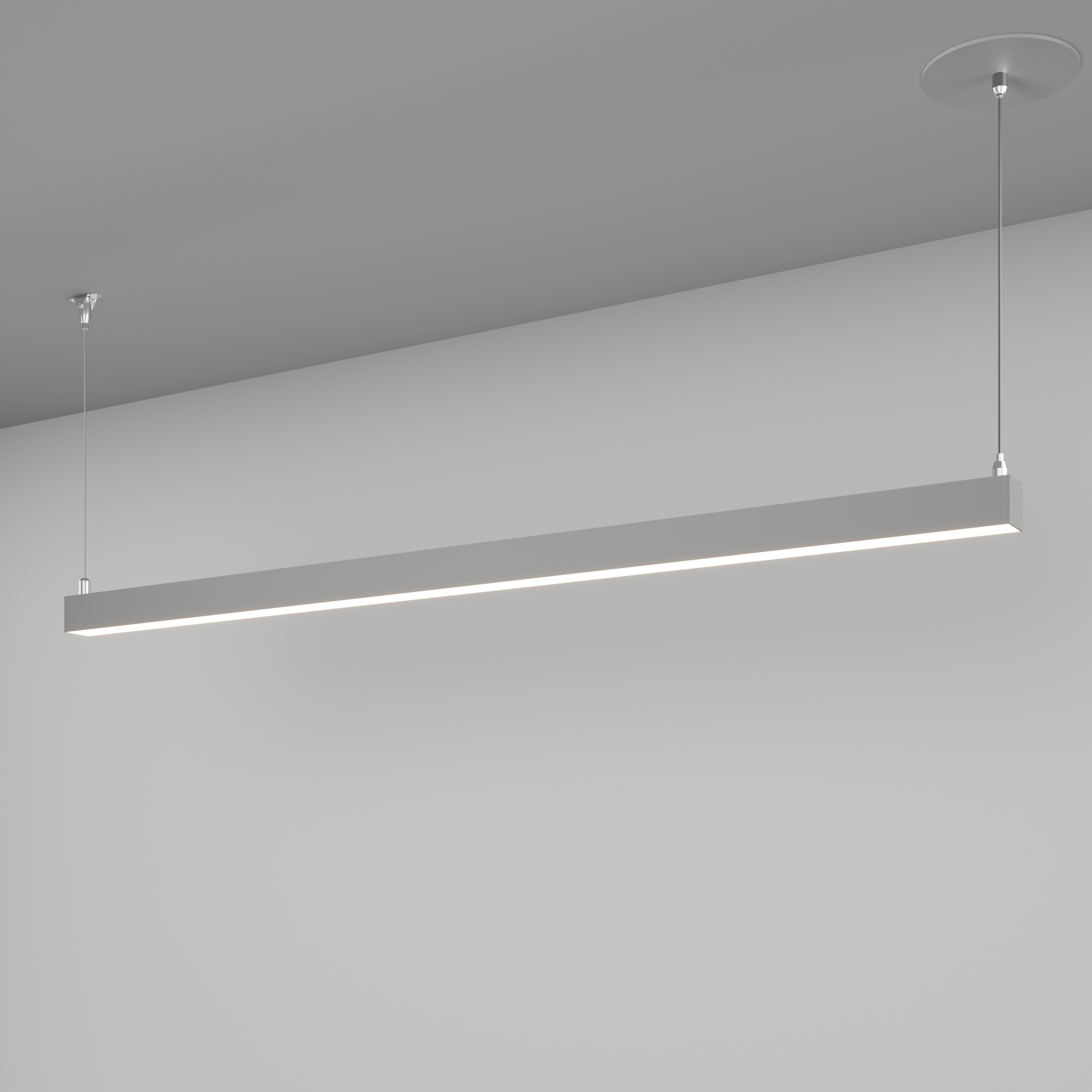

Suspan 1 Gen 2 Pendant Light

AL - SFU - SUSP1G2 - I - HE - 24 - [CCT] - FRT - AL - [Length]

The Suspan 1 Gen 2 Pendant Light is our brightest fixture yet! Boasting seamless construction, the fixture combines high-quality aluminum and precision-cut end caps to ensure no light escapes from unintended spaces. The UL-Listed, lightweight fixture is powered by our exclusive light engine specifically designed for Suspan 1 Gen 2 and conceals bulky power cords through a powered suspension cable using our cleverly designed canopy kit. Suspan 1 Gen 2 Pendant Lights provide bright, clean, primary overhead lighting for every application!

  • Thermally-balanced design for maximum cooling
  • Superior color rendering
  • High R9 and R13 values
Get more info
Quick Specs Specification Sheet Literature IES Files Photometrics
  • Material: Aluminum
  • Width: 1.4 in.
  • Height: 1.5 in.
  • Maximum Suspension Length: 120 in. / 10 ft.
  • Wattage: ~9.3W/ft.
  • Lumens per Foot (Complete Fixture): 536~648
  • Lumens per Watt (Complete Fixture): 60~70
  • Input Voltage: 24V
  • Location: Indoor
  • Certifications: UL-Listed
  • Mounting: Canopy kit (included)
Quick Specs
  • Material: Aluminum
  • Width: 1.4 in.
  • Height: 1.5 in.
  • Maximum Suspension Length: 120 in. / 10 ft.
  • Wattage: ~9.3W/ft.
  • Lumens per Foot (Complete Fixture): 536~648
  • Lumens per Watt (Complete Fixture): 60~70
  • Input Voltage: 24V
  • Location: Indoor
  • Certifications: UL-Listed
  • Mounting: Canopy kit (included)
Specification Sheet
Literature
IES Files
Photometrics
Models
AL - SFU - SUSP1G2 - I - HE - 24 - [Choice of CCT] - FRT - AL - [Indicate Length in Whole Inches] -
27 = 2700K 24-84 in.
30 = 3000K The fixture comes complete up to 84 in.
35 = 3500K *Please contact us for longer lengths
42 = 4200K
50 = 5000K
Example:
AL-SFU-Suspan1G2-I-HE-24-30-FRT-AL-84 =
Suspan 1 Gen 2 Pendant Light - 3000K - 84 in.
