FocaLine 6 Flexible Grazer Fixture
AL-SFU-FocaLine6-O-FocaLine6-24V-[CCT]-[Lens]-BL-[Length]
FocaLine 6 Fixture is a flexible wall grazer with an extremely focused beam angle of only 10° allowing it to easily skim the surface of a wall, creating pronounced shadows and highlights that enhance the texture.
- Narrow 10° optical beam angle for precise grazing of a wide range of wall heights
- High performance 4000+ peak center beam candela
- High CRI of 95+ for excellent color rendering

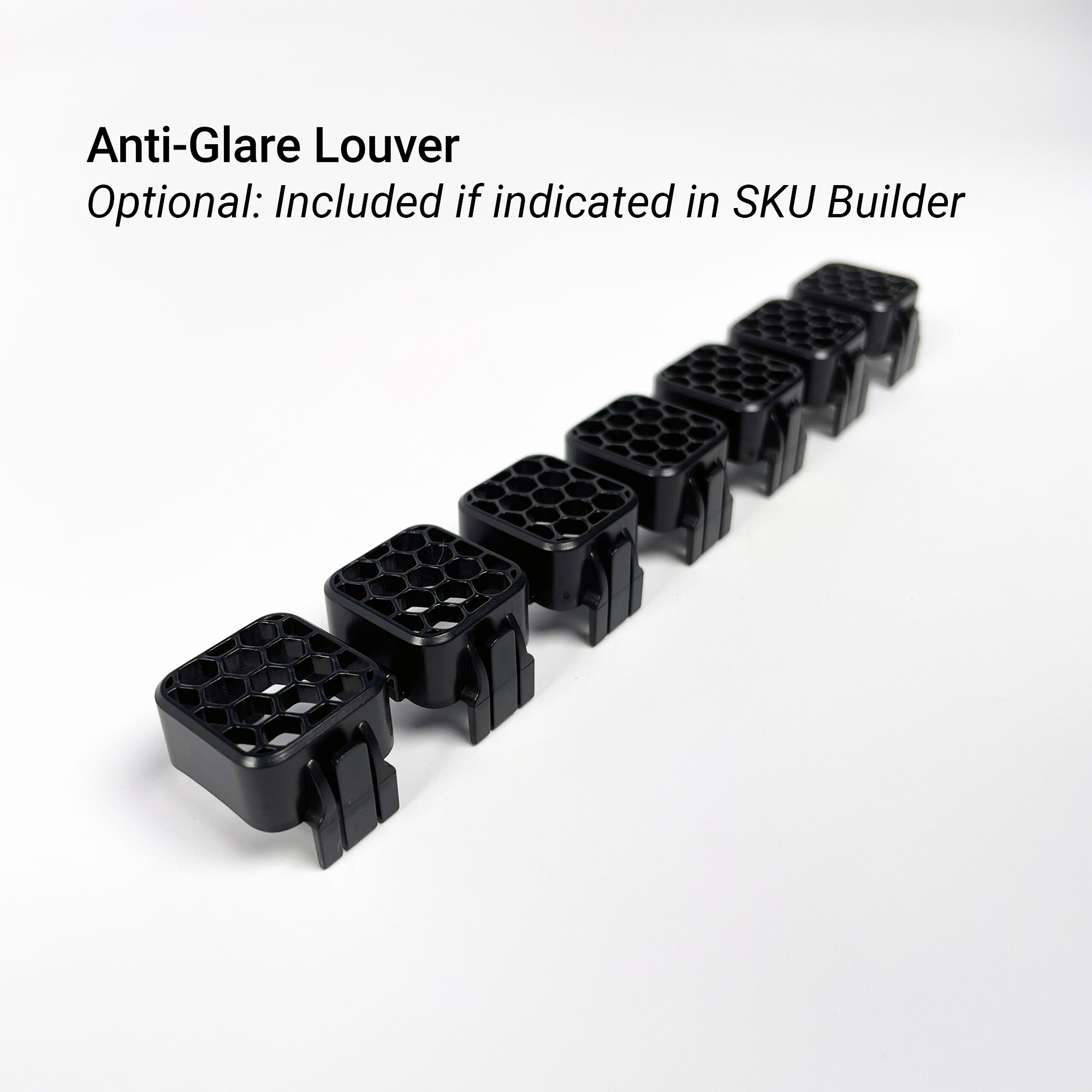

- Pair with optional anti-glare louvers to cut down unsightly glare
- Adjustable brackets provide precise positioning, ensuring optimal illumination angles
- Complete fixture with grazer, channel, lens, etc.
- Material: Aluminum
- Width: 1.20 in.
- Height: 0.84 in.
- Beam Angle: 10° (+/- 3° tolerance)
- Wattage: 6W/ft
- Input Voltage: 24V
- Location: Indoor/Outdoor
- Certification: UL. RoHS, CE Commission in accordance with Title 24 JA8 2016 std.
- Warranty: 6 Year Limited
Quick Specs
- Material: Aluminum
- Width: 1.20 in.
- Height: 0.84 in.
- Beam Angle: 10° (+/- 3° tolerance)
- Wattage: 6W/ft
- Input Voltage: 24V
- Location: Indoor/Outdoor
- Certification: UL. RoHS, CE Commission in accordance with Title 24 JA8 2016 std.
- Warranty: 6 Year Limited
Specification Sheet
IES Files
Photometrics
Models
| AL - SFU - Focaline6 - O - FocaLine6 - 24V | - CCT | - Lens | - BL | - Length | - # of Leads | - Lead Length 1 | - Lead Length 2 |
| 2700K | CLV (Clear Cover with Glare Control Louvers) | Inches | 1LEAD | Inches | Inches | ||
| 3000K | CLR (Clear Cover without Glare Control Louvers) | Up to 84 in. continuous fixture | 2LEAD | ||||
| 3500K | Up to 33 ft. with multiple sections | ||||||
| 4000K |
