New
Radialux™ 5.8 LP (Low-Profile) RGBW Tape Light
AL-02-07-XXXX

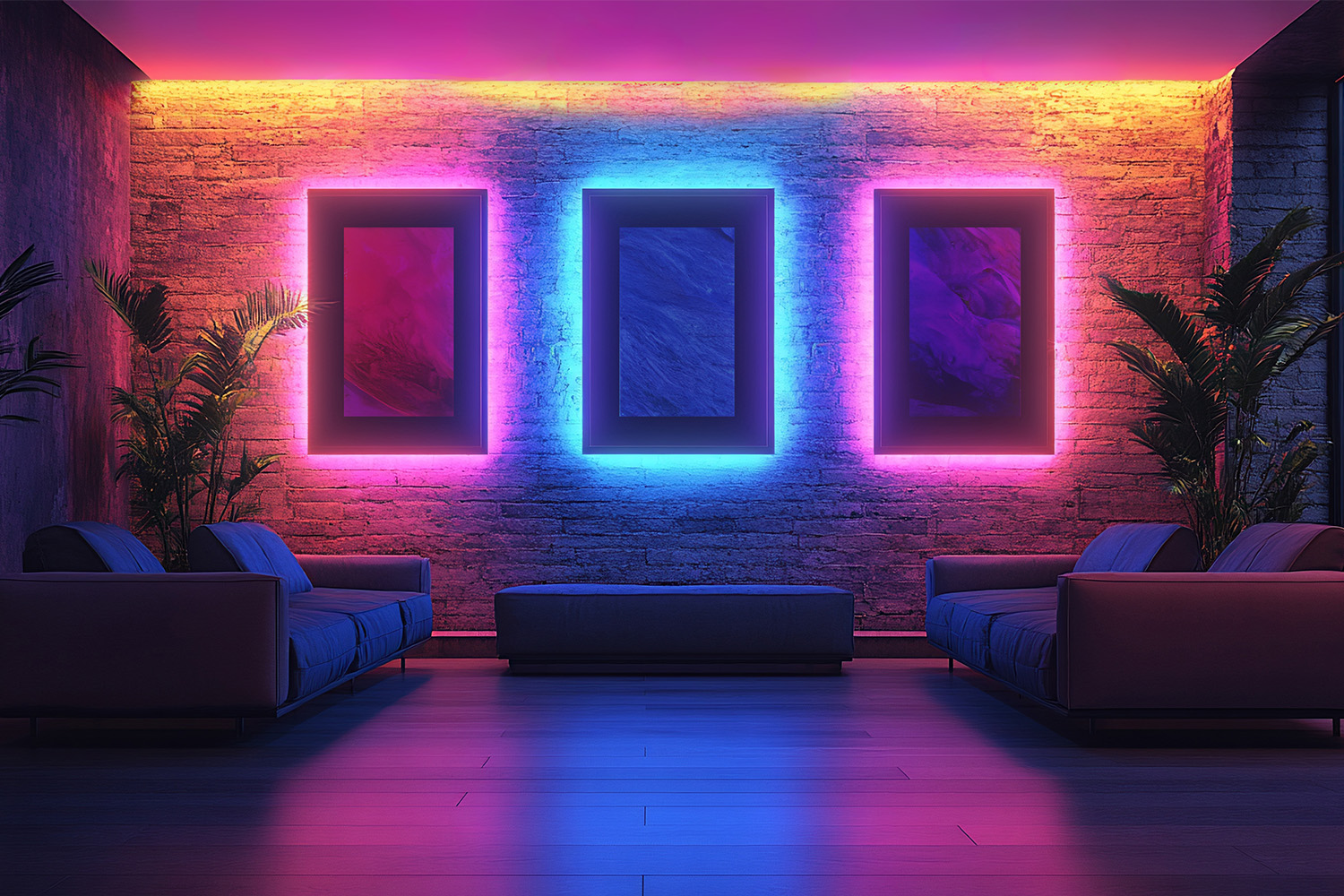

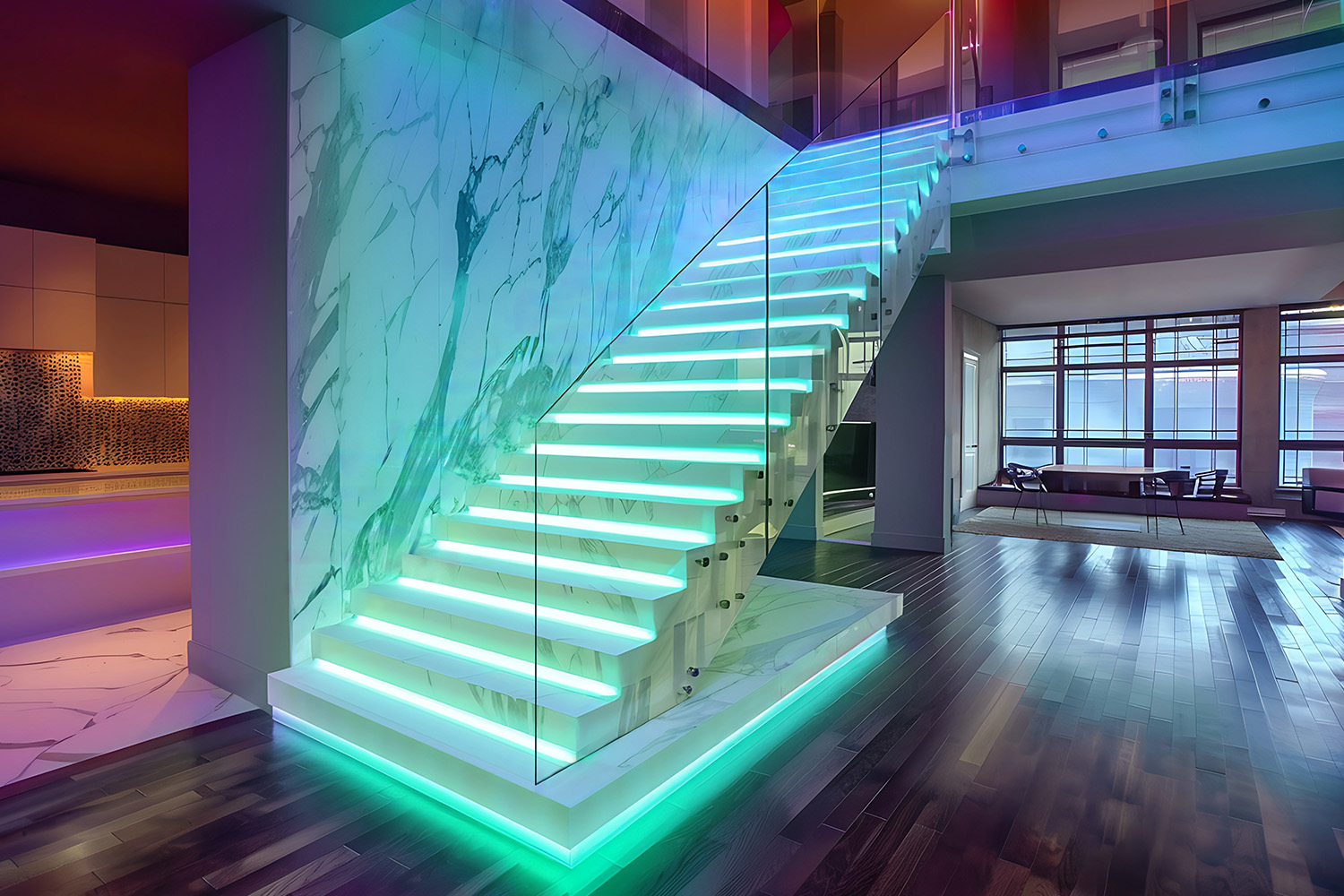

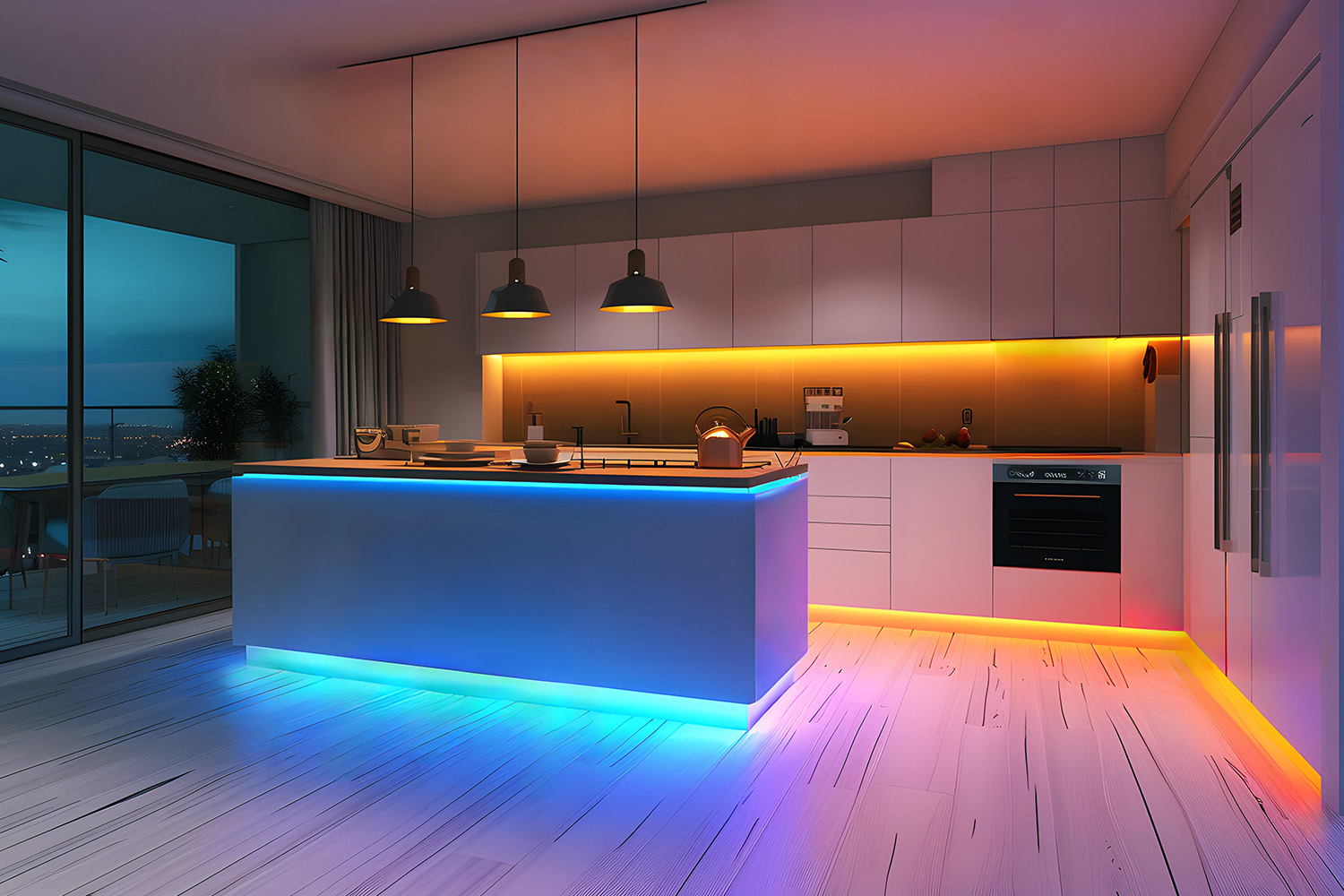

Radialux 5.8 LP (Low-Profile) RGBW is a compact, low-profile LED tape light that delivers full RGB color plus true white from a low-profile, space-saving form factor. Featuring a high-density 4-in-1 diode package, this tape light blends colors evenly at the source—eliminating color shadows and delivering smooth, hotspot-free output, even in shallow channels. Its narrow PCB design allows for easy integration into tight spaces, making it ideal for architectural accents, millwork, and low-clearance applications.
- Stocked Color Temperatures: RGBW
- Power Consumption per foot: 5.8 Watts
- LED Chips per foot: 36
- LED Chip Spacing: 0.33 inches
- Tape Width: 0.31 inches
- Tape Height: 0.1 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 1.97 in.
- Maximum Run Length: 16 ft.
- Dimmable: Yes
Quick Specs
- Stocked Color Temperatures: RGBW
- Power Consumption per foot: 5.8 Watts
- LED Chips per foot: 36
- LED Chip Spacing: 0.33 inches
- Tape Width: 0.31 inches
- Tape Height: 0.1 inches
- Beam Angle: 120°
- Field Cuttable (UL 2108): Every 1.97 in.
- Maximum Run Length: 16 ft.
- Dimmable: Yes
Specification Sheet
Instructions
Compatibility Chart
Models
| Item Number | Length | Voltage | Watts per foot | Maximum Run |
| AL-02-07-2401 | 16 ft. | 24V DC | 6.2W | 16 ft. |
| Item Number | Description |
| AL-01-99-9988-BL-CU-IN | 20 AWG UL2464 3-Conductor Wire - Black |
| AL-01-99-9988-WH-CU-IN | 20 AWG UL2464 3-Conductor Wire - White |
