Radialux™ 5.5 COB RGBTW Tape Light
AL-02-62-XXXX

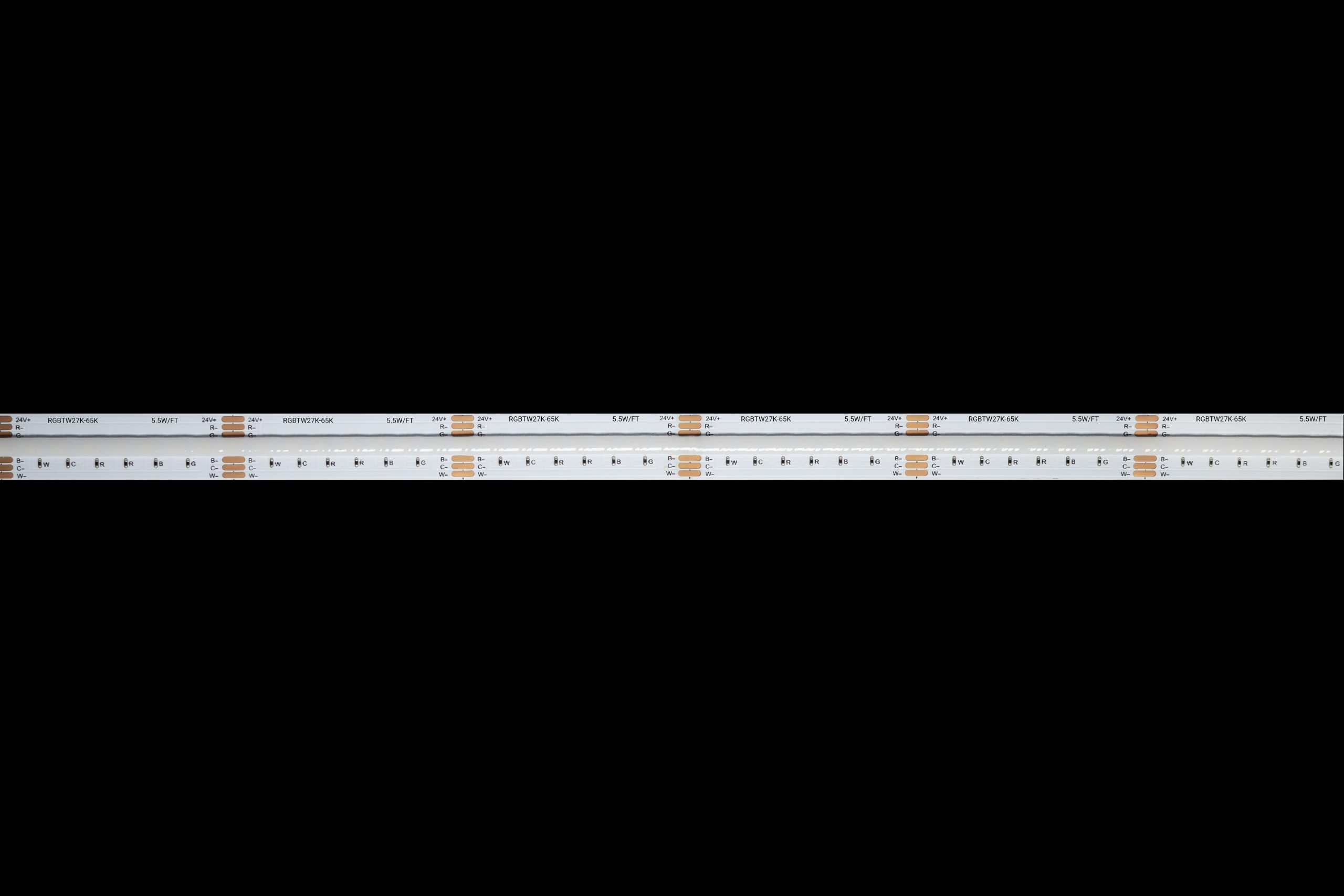

Radialux 5.5 COB RGBTW Tape Light is a premium 5-channel LED tape light that combines dynamic color-changing (RGB) capabilities with tunable white light (2700K–6500K), all in a dot-free COB format. With seamless illumination and five-channel control, this tape light offers unlimited design flexibility for color-rich architectural accents, immersive environments, and high-end residential or commercial spaces.
Designed for use with advanced controllers, the Radialux 5.5 COB can create vivid saturated colors, soft pastels, or perfectly balanced whites—all from a single light source. The Chip-on-Board (COB) construction delivers a smooth, continuous line of light with no visible diode gaps, even in direct view applications.
- Stocked Color Temperatures: RGBTW
- Power Consumption per foot: 5.5 Watts
- LED Chips per foot: 292
- LED Chip Spacing: 0.04 inches
- Tape Width: 0.47 inches
- Tape Height: 0.07 inches
- Beam Angle: 140°
- Field Cuttable (UL 2108): Every 1.64 in.
- Maximum Run Length: 14 ft.
- Dimmable: Yes
Quick Specs
- Stocked Color Temperatures: RGBTW
- Power Consumption per foot: 5.5 Watts
- LED Chips per foot: 292
- LED Chip Spacing: 0.04 inches
- Tape Width: 0.47 inches
- Tape Height: 0.07 inches
- Beam Angle: 140°
- Field Cuttable (UL 2108): Every 1.64 in.
- Maximum Run Length: 14 ft.
- Dimmable: Yes
Specification Sheet
Instructions
Compatibility Chart
Photometrics
Models
| Item Number | Length | Voltage | Watts per foot | Maximum Run |
| AL-02-62-2401 | 14 ft. | 24V DC | 5.8W | 14 ft. |
| Item Number | Description |
| AL-02-62-9991-BL-CU-IN | 22 AWG 2464 6-Conductor Wire - Black |
| AL-02-62-9991-WH-CU-IN | 22 AWG 2464 6-Conductor Wire - White |
