Surfa 1 Aluminum Channel

AL-50-03-XXXX

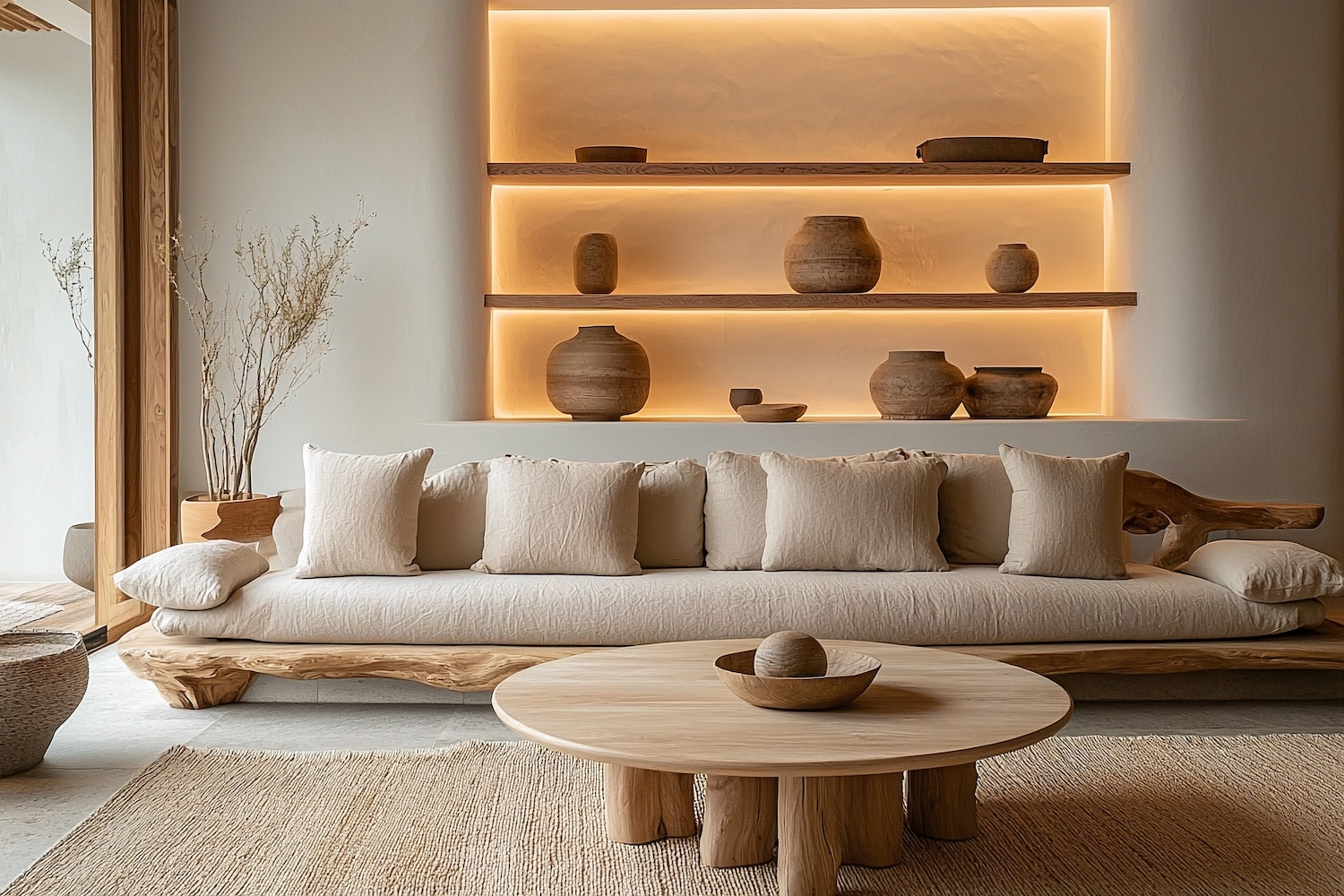

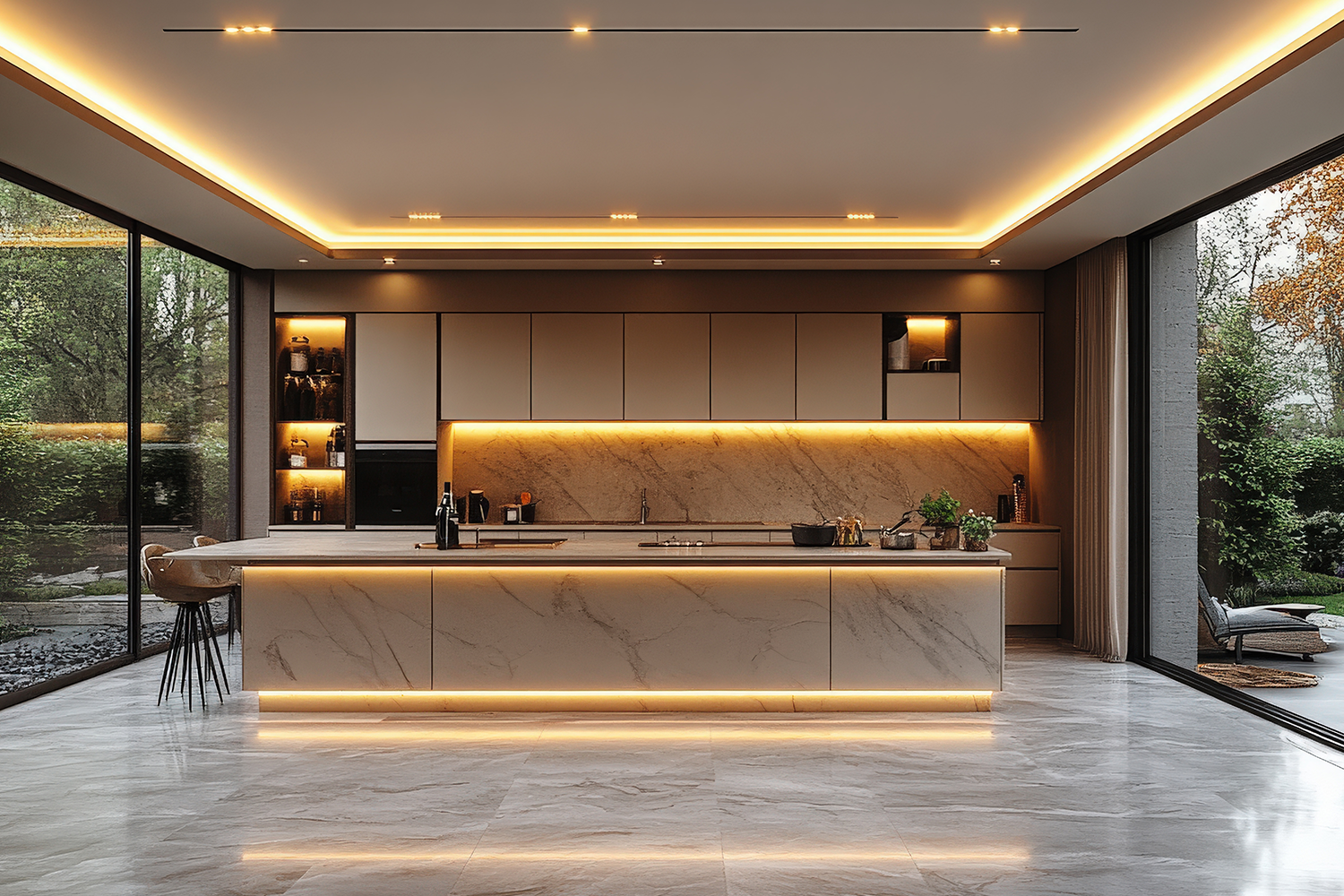

At only a third of an inch high, the Surfa 1 is ideal for general low-profile surface mounting of LED tape light. With three finish options – aluminum, matte black, and glossy white – Surfa complements a wide variety of applications. Surfa 1 corner connectors can be used to link channel sections seamlessly around corners, while straight connectors can join straight sections of the channel for longer runs. This channel is compatible with selected tape light models only, see the Downloads tab for information.

Get more info
Quick Specs Specification Sheet Instructions Compatibility Chart

Width (outside): 0.71 in.
Width (inside): 0.48 in.
Height: 0.28 in.
Material: aluminum
Warranty: 6 Year Limited

Quick Specs

Width (outside): 0.71 in.
Width (inside): 0.48 in.
Height: 0.28 in.
Material: aluminum
Warranty: 6 Year Limited

Specification Sheet
Instructions
Compatibility Chart
Models
Item Number Description
AL-50-03-0111-KIT* 4 ft. aluminum kit includes 1 channel, 1 diffuser cover, 2 pairs of plastic end caps, and 5 mounting clips and screws
AL-50-03-0111-KIT-BL* 4 ft. matte black kit includes 1 channel, 1 diffuser cover, 2 pairs of black plastic end caps, 5 mounting black clips and 5 silver screws
AL-50-03-0111-KIT-WH* 4 ft. gloss white kit includes 1 channel, 1 diffuser cover, 2 pairs of white plastic end caps, 5 mounting white clips and 5 silver screws
AL-50-03-0115-KIT* 7 ft. aluminum kit includes 1 channel, 1 diffuser cover, 4 pairs of plastic end caps, and 9 mounting clips and screws
AL-50-03-0115-KIT-BL* 7 ft. matte black kit includes 1 channel, 1 diffuser cover, 4 pairs of black plastic end caps, 10 mounting black clips and 10 silver screws
AL-50-03-0115-KIT-WH* 7 ft. gloss white kit includes 1 channel, 1 diffuser cover, 4 pairs of white plastic end caps, 10 mounting white clips and 10 silver screws
AL-50-03-0011-AL-PART Channel - 4 ft. - aluminum finish
AL-50-03-0015-AL-PART Channel - 7 ft. - aluminum finish
AL-50-03-9902-FRT Frosted diffuser cover - 4 ft.
AL-50-03-9905-FRT Frosted diffuser cover - 7 ft.
AL-50-03-9912-CLR Clear cover - 4 ft.
AL-50-03-9915-CLR Clear cover - 7 ft.
AL-50-03-9922-30 Focaline optical lens cover - 30° - 4 ft. (includes optical end caps)
AL-50-03-9925-30 Focaline optical lens cover - 30° - 7 ft. (includes optical end caps)
AL-50-03-9951-SL Plastic color-matched end caps 2 pair pack: 2 open, 2 closed
AL-50-03-9956-SL Plastic color-matched end caps 10 pair pack: 10 open, 10 closed
AL-50-03-9986-WH Mounting clips and screws - 5-pack
AL-50-03-9991-WH 90° plastic mounting clips and screws - 5-pack
AL-50-03-9991-BL 90° plastic mounting clips and screws - Black - 5-pack
AL-50-03-9991-WHITE 90° plastic mounting clips and screws - White - 5-pack
AL-50-03-9992-SL Straight connector - plastic
AL-50-03-9992-BL Straight connector - black plastic
AL-50-03-9992-WHITE Straight connector - white plastic
AL-50-03-9993-SL Corner connector - plastic
AL-50-03-9993-BL Corner connector - black plastic
AL-50-03-9993-WHITE Corner connector - white plastic
*Add -20 or -40 to the end of the item number for discounted bundles.
Note: This channel is compatible with selected tape light models only, see the Downloads tab for information.
