PrimaPanel RGBW Flexible LED Sheet

AL-02-92-2401

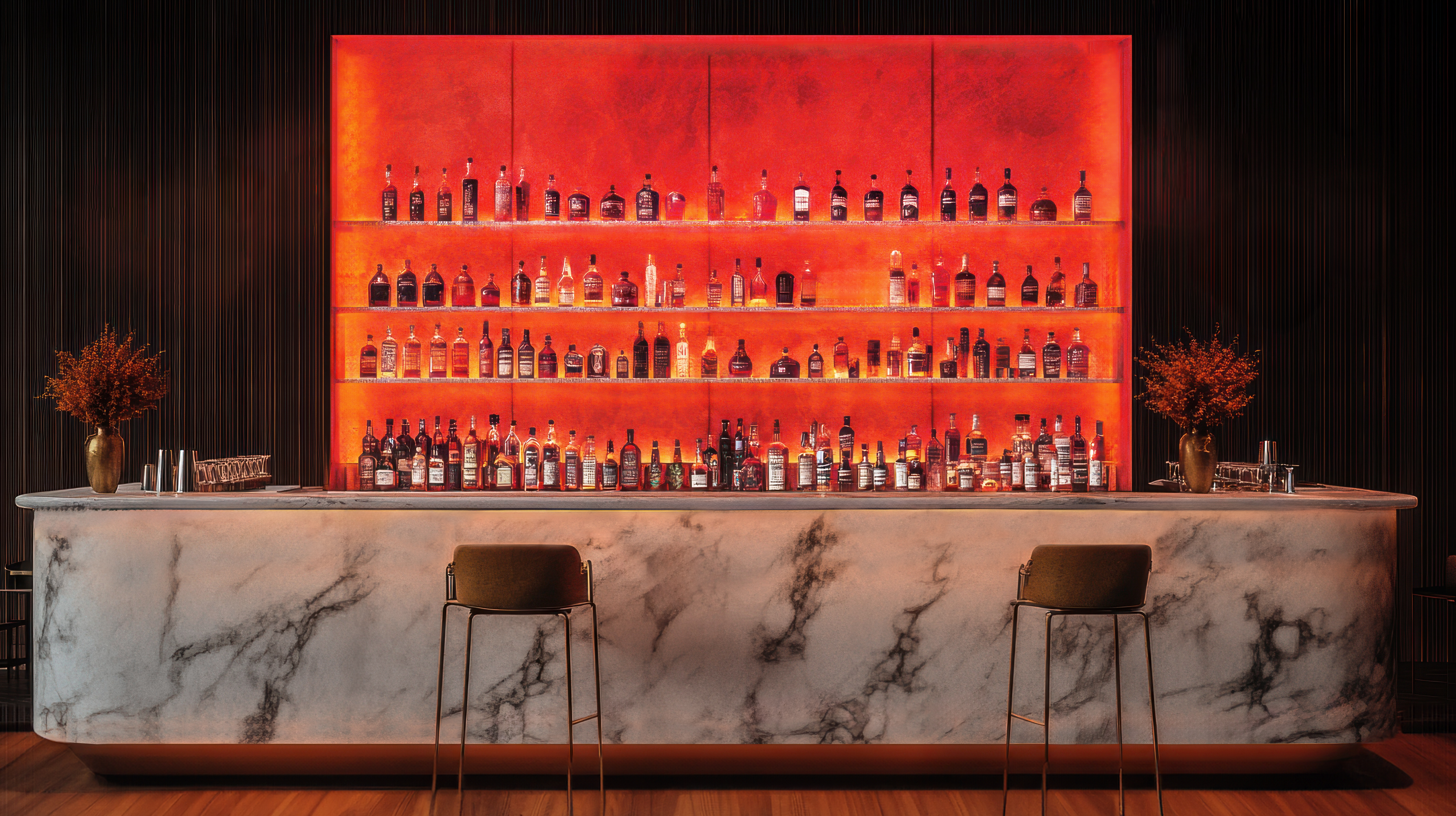

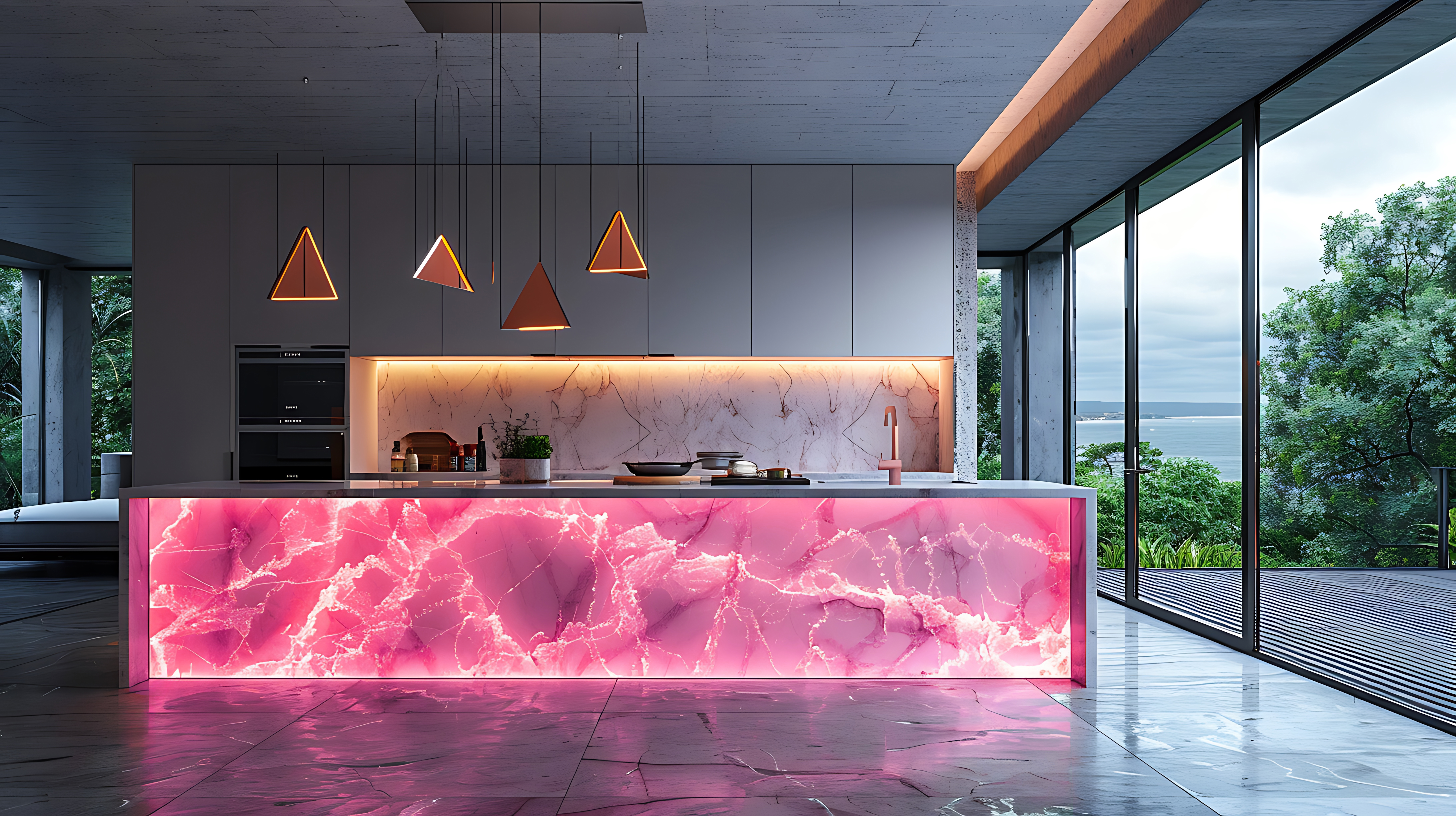

The PrimaPanel RGBW LED Sheet is a fully modular, flexible, water-resistant, and cuttable LED sheet for backlighting applications such as displays, translucent materials, showcases, and more. Designed with RGBW technology, it provides a wide spectrum of rich color effects along with dedicated white light for versatile illumination and a smooth, hotspot-free look. The LED sheet offers easy installation with 3M™ adhesive tape or by using nails or screws at the designated areas on the sheet.

  • Coated with an IP64-rated water-resistant nano-coating to fit any installation needs
  • Acrylic standoff accessory offers a complete backlighting solution that ensures even illumination
  • High density of LED chips contributes to a smooth distribution of light
  • Cuttable vertically and horizontally in single groups, allowing customized sizing and layouts
  • High CRI of 95+ mix of white and RGB light provides both pastel and saturated color possibilities
  • Wide spectrum of rich color effects
  • Compatible with external controllers to enable rich, dynamic lighting effects

Includes the following accessories:

  • Two 4.5 in. jumper cables
  • Two 6 in. hardwire power cables
  • Six screws

Optional accessories:

  • 1 in. acrylic standoff – 4-pack
  • .75 in. acrylic standoff – 4 pack
  • .50 in. acrylic standoff – 4-pack
  • Color Temperature: RGBW
  • 24V Power Consumption per Sheet.: 31.39 Watts
  • Input Voltage: 24V DC
  • Diodes per sheet: 512
  • Diode Spacing: 0.94 inches
  • Sheet Height: 0.07 inches
  • Beam Angle: 120°
  • Cutting Size: 1.18 x 1.18 in. (Horizontal/Vertical)
  • Maximum Run: 3 sheets
  • Dimmable: Yes
  • Diode Type: 2835 SMD
  • Mounting: Screws, nails and 3M VHB Adhesive Backing
  • Operating Temperature: -13° F to 140° F
  • Sheet Dimensions (LxWxH): 18.9 x 9.45 x 0.07 in.
  • Maximum Bend Radius: 1 inch
  • Location: Indoor, Outdoor (IP64)
  • Certifications: UL Listed
  • Warranty: 6 Year Limited
Quick Specs
  • Color Temperature: RGBW
  • 24V Power Consumption per Sheet.: 31.39 Watts
  • Input Voltage: 24V DC
  • Diodes per sheet: 512
  • Diode Spacing: 0.94 inches
  • Sheet Height: 0.07 inches
  • Beam Angle: 120°
  • Cutting Size: 1.18 x 1.18 in. (Horizontal/Vertical)
  • Maximum Run: 3 sheets
  • Dimmable: Yes
  • Diode Type: 2835 SMD
  • Mounting: Screws, nails and 3M VHB Adhesive Backing
  • Operating Temperature: -13° F to 140° F
  • Sheet Dimensions (LxWxH): 18.9 x 9.45 x 0.07 in.
  • Maximum Bend Radius: 1 inch
  • Location: Indoor, Outdoor (IP64)
  • Certifications: UL Listed
  • Warranty: 6 Year Limited
Models
Item Number Voltage Color Temperature Lumens per sheet
AL-02-92-2401 24V DC RGBW 2032
Item Number Description
AL-02-92-99STND100-4 Acrylic Standoff - Pack of 4 - 1 in. - 8 screws
AL-02-92-99STND075-4 Acrylic Standoff - Pack of 4 - 0.75 in. - 8 screws
AL-02-92-99STND050-4 Acrylic Standoff - Pack of 4 - 0.5 in. - 8 screws
