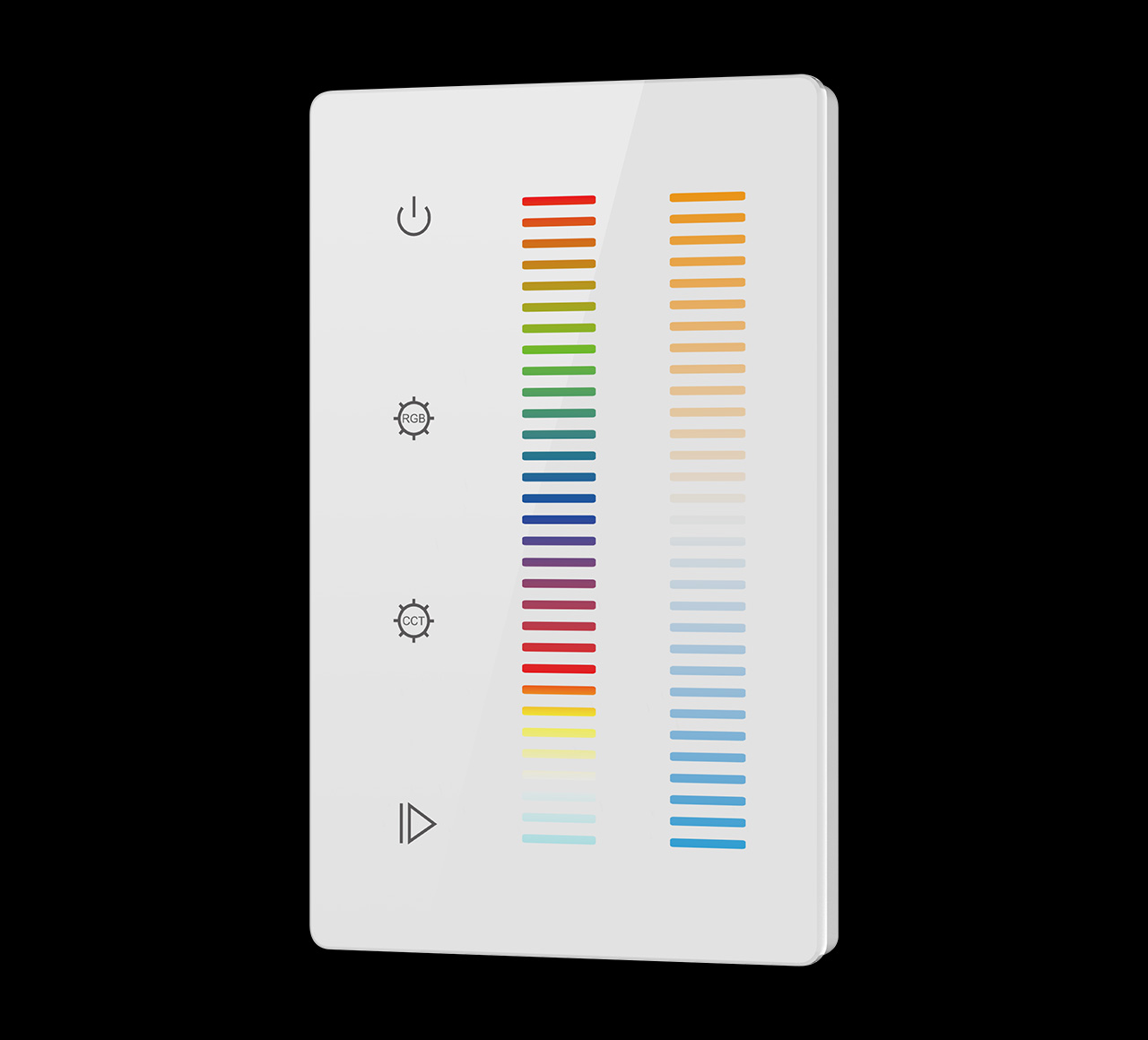

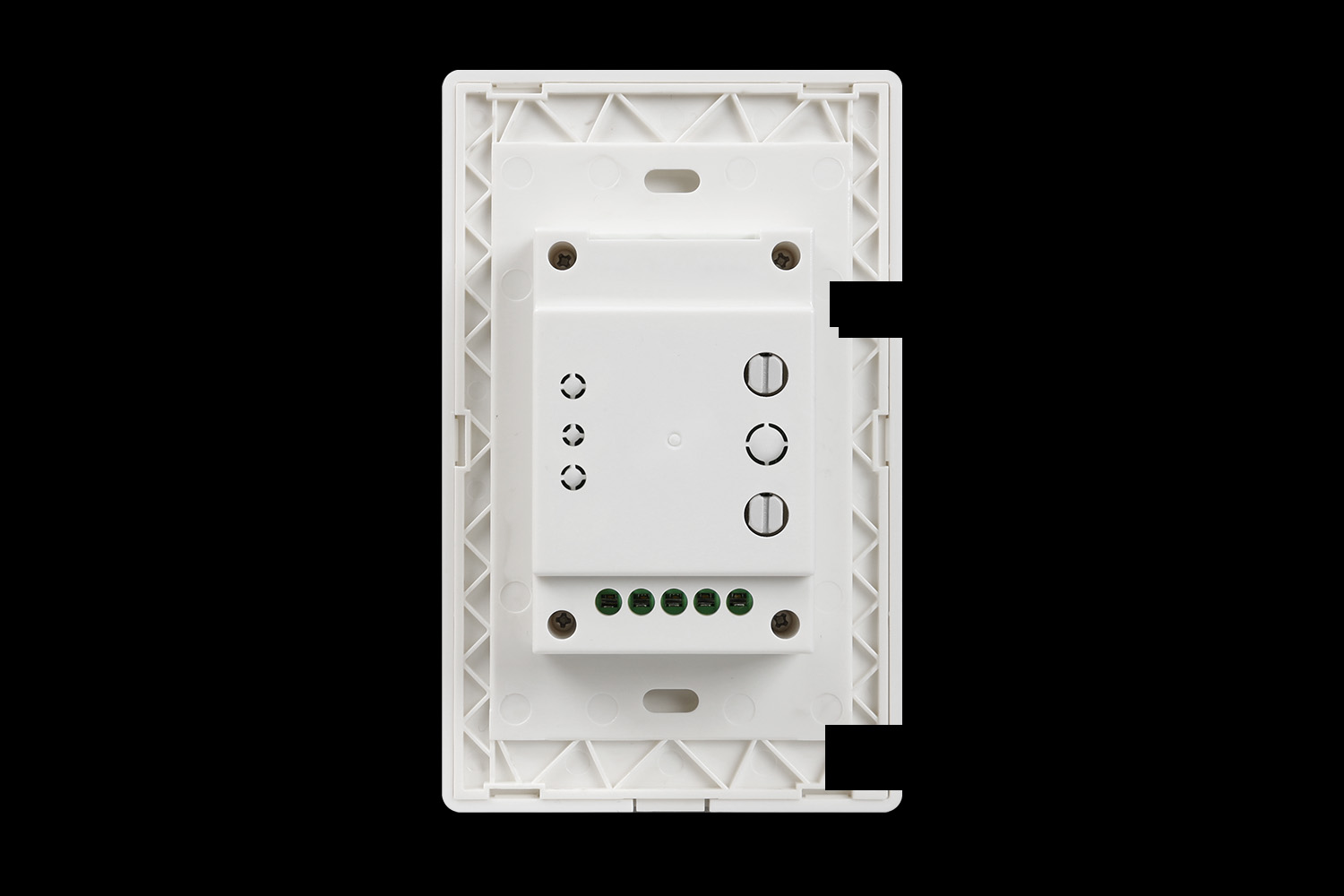

DMX Touch Wall Controller – RGBTW – 12V or 24V

AL-60-03-0011

The DMX Touch Wall Controller RGBTW 12V or 24V DC is used to control the color mode, speed, and brightness of both Radialux® RGB and RGBW tape lights. Featuring a touch-sensitive glass interface, this controller can also be used to adjust the tuning range of our tunable tape lights and is compatible with DMX decoders for hard-wired DMX color control. This controller is powered by our Non-Dimmable Drivers.

Get more info
Quick Specs Specification Sheet
  • Input Voltage: 12-24V DC
  • Output Signal: DMX512
  • Power Consumption: <20mA
  • Operating Temperature: -20ºC~+40ºC, -4ºF~104ºF
  • Dimensions: 4.72 x 2.95 x 1.5 in.
  • Power Source: 12-24V Non-Dimmable Driver
  • Control: RGB+CCT COLOR
  • Location: Indoor, Dry (IP20)



Quick Specs
  • Input Voltage: 12-24V DC
  • Output Signal: DMX512
  • Power Consumption: <20mA
  • Operating Temperature: -20ºC~+40ºC, -4ºF~104ºF
  • Dimensions: 4.72 x 2.95 x 1.5 in.
  • Power Source: 12-24V Non-Dimmable Driver
  • Control: RGB+CCT COLOR
  • Location: Indoor, Dry (IP20)
Specification Sheet



Models
Item Number Output Signal Input Voltage Dimensions Control
AL-60-03-0011 DMX512 12-24V DC 4.72 in. x 2.95 in. x 1.5in RGB+CCT COLOR
