New

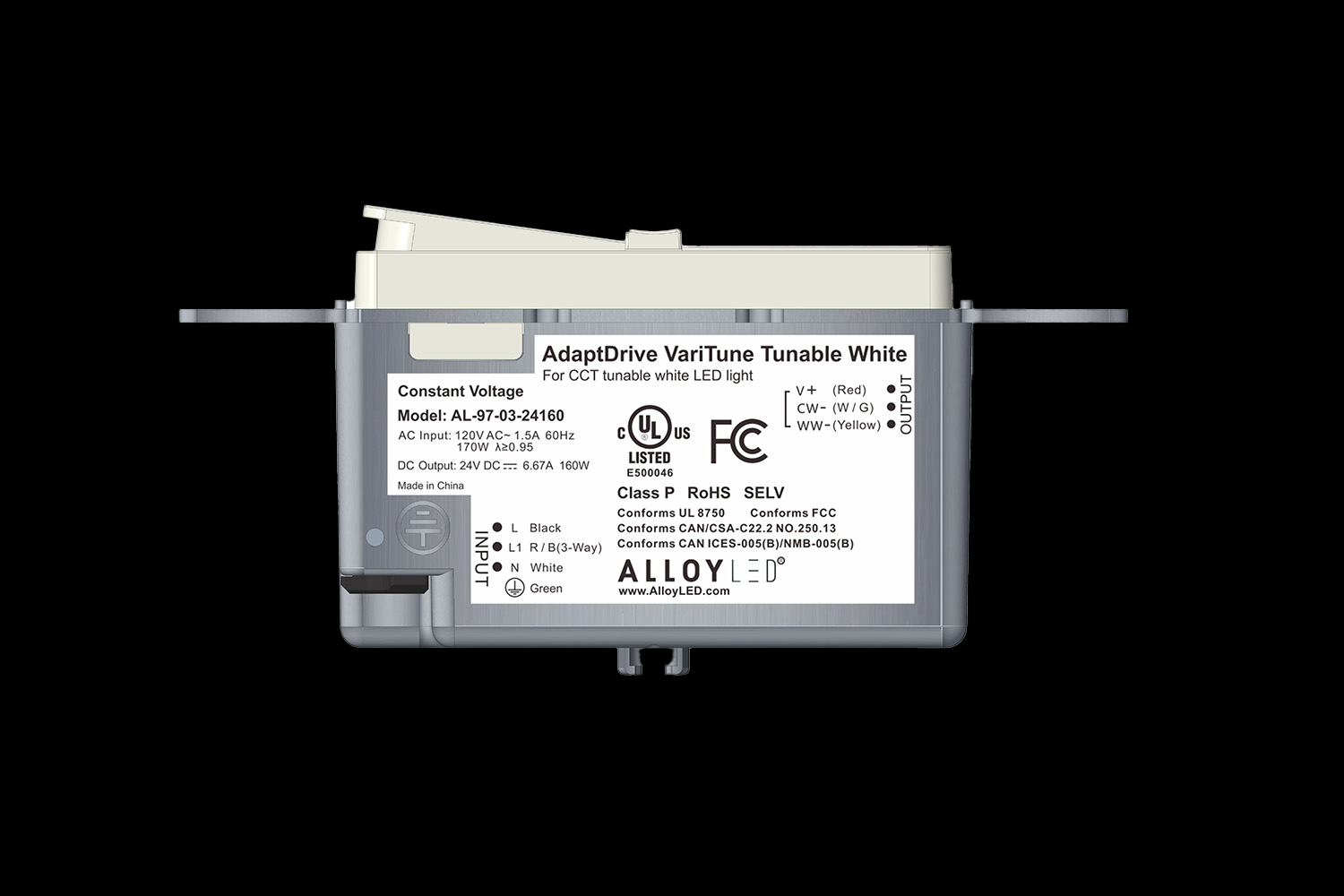

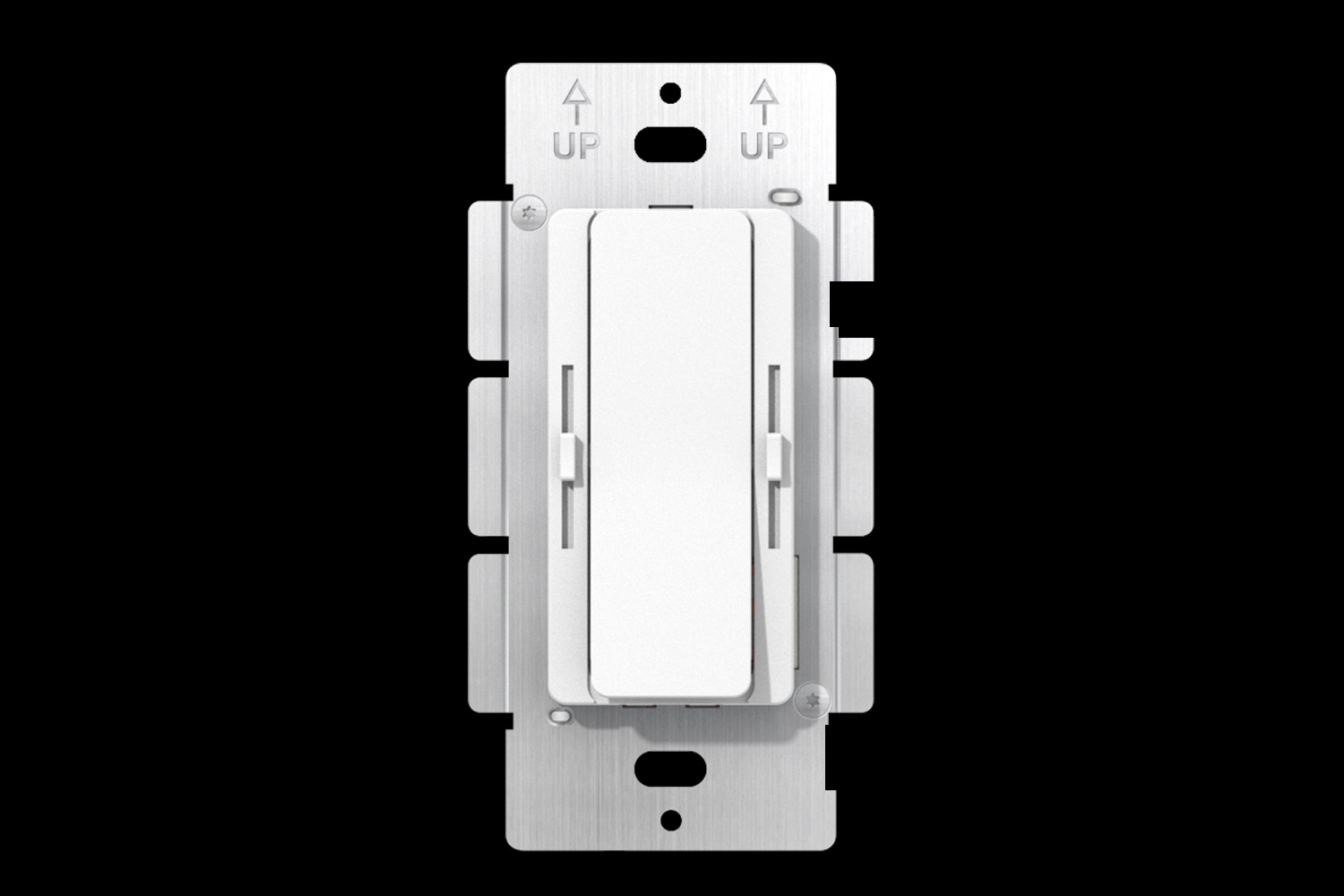

AdaptDrive VariTune Tunable White – 24V DC – LED Wall Dimmer and Driver

AL-97-03-XXXX

AdaptDrive is an all-in-one LED driver and dimmer that simplifies installation by fitting directly into a standard recessed electrical box—eliminating the need for a separate driver location. UL Listed AdaptDrive is available in 24VDC configurations to suit tunable white light applications.

  • Constant Voltage Output in 24VDC
  • Installs directly into standard wall boxes
  • First in its class for power density in a recessed enclosure
  • 96W model maintains Class 2 compliance
Get more info
Quick Specs Specification Sheet
  • Input Voltage: 120V AC
  • Features: 100% Maximum Load, 0% Minimum Load
  • Environment: Dry/Damp
  • Certifications: UL, cUL, Class P, Type HL/SELF/CE/RoHS/REACH
  • Warranty: 6 Year Limited



Quick Specs
  • Input Voltage: 120V AC
  • Features: 100% Maximum Load, 0% Minimum Load
  • Environment: Dry/Damp
  • Certifications: UL, cUL, Class P, Type HL/SELF/CE/RoHS/REACH
  • Warranty: 6 Year Limited
Specification Sheet



Models
Item Number Output Voltage Wattage Dimensions
AL-97-03-24096 24V DC 96W 4.13 x 2.12 x 1.59 in.
AL-97-03-24160 24V DC 160W 4.13 x 2.12 x 1.59 in.
